HOLDEN COLORADO (2016-2020)

133 LITRE (128 USEABLE) REPLACEMENT LONG RANGE FUEL TANK

The Holden Colorado has been taking Australian’s around our huge country for over a decade. The difference now compared to the old days is how you carry the extra fuel required for your long distance trip. Dirty jerry’s is a thing of the past!

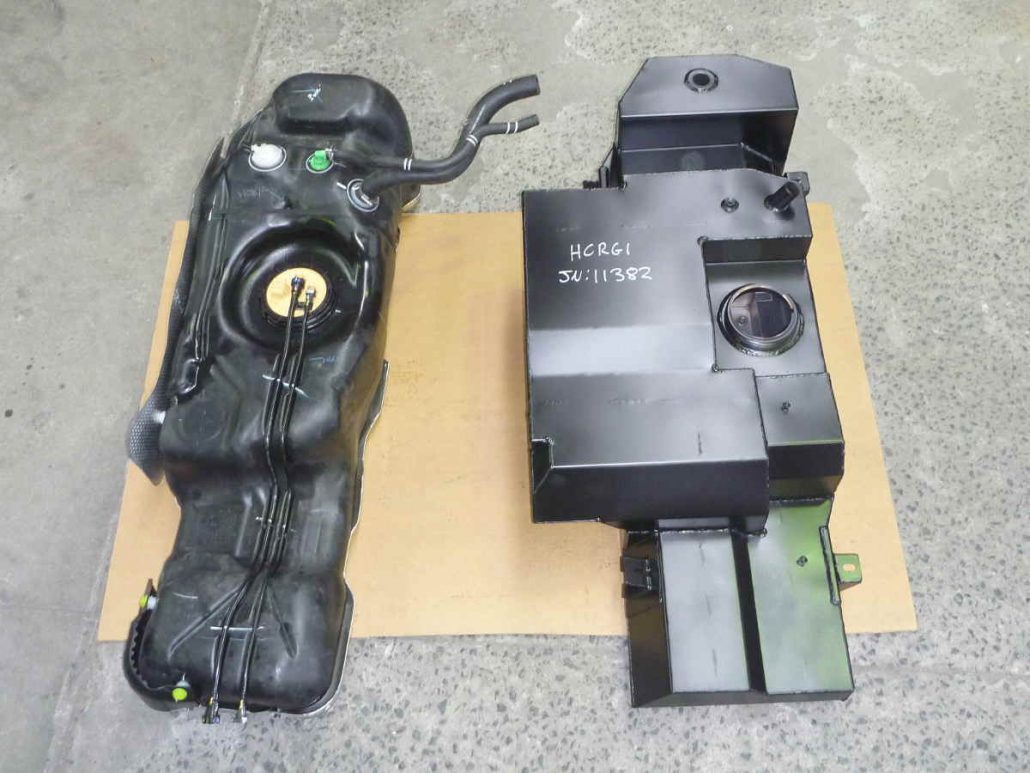

In only 2 hours your nearest Brown Davis dealer can remove your standard fuel tank and replace it with a whopping 133lt Brown Davis long range fuel tank! The replacement tank utilises factory components making for a quick and simple install with no modifications required.

Specifications

PART NUMBER: HCRGR1
TANK TYPE: REPLACEMENT
CAPACITY: 133 Litres (128 Useable)
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES STANDARD TANK
FITTING TIME: 2.5 hour/s
PRODUCT COLOR: BLACK

MODIFICATIONS: NONE REQUIRED



COLORADO OWNER : Simon Christie (4WD TV, YOUR 4X4 – host)

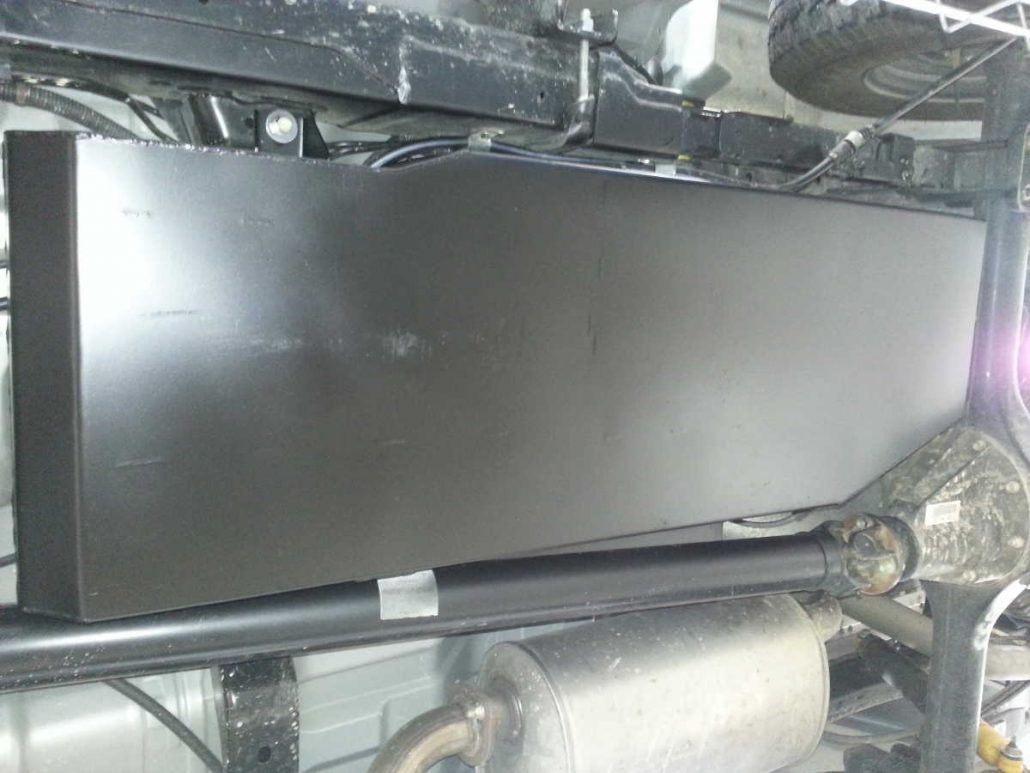

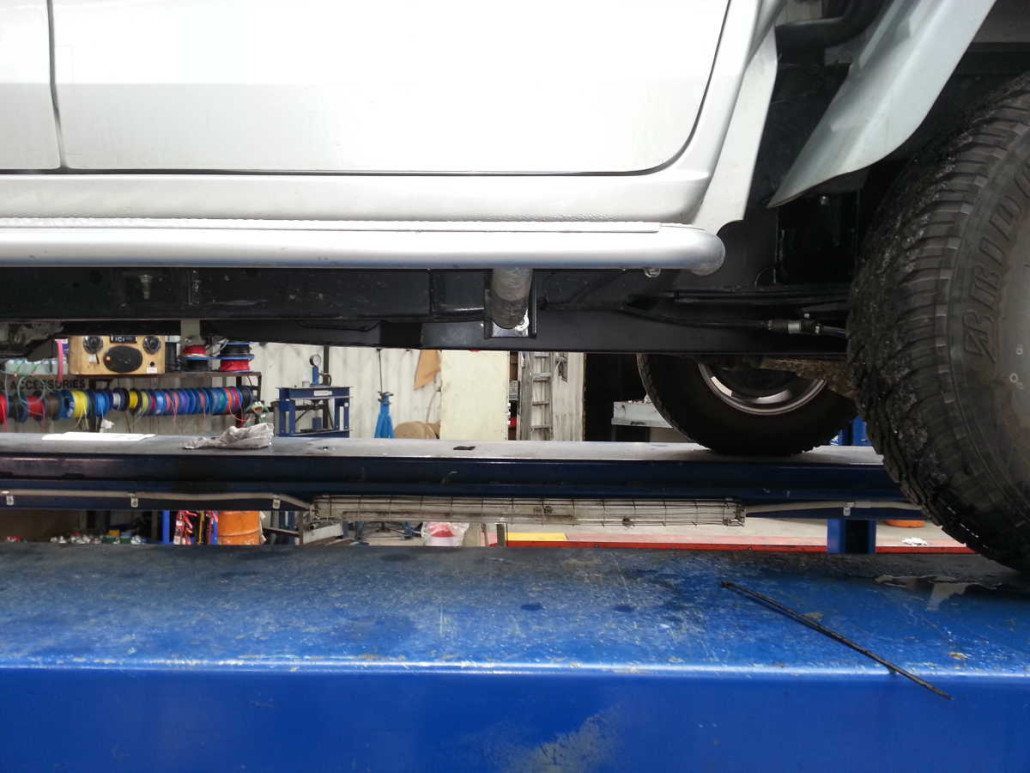

For those who watch Simon Christie on YOUR4X4 and 4WDTV you will see him push the Holden Colorado RG Ute to the limit. The vehicle has proven itself all around this large country. The Brown Davis replacement long range fuel tank is no different. From touring the Kimberley to the sharp rocks of the High Country the fuel tank has tackled everything thrown at it. The Brown Davis long range fuel tank sits at the same height as the vehicles standard tank making sure your ground clearance and ramp over are not effected.

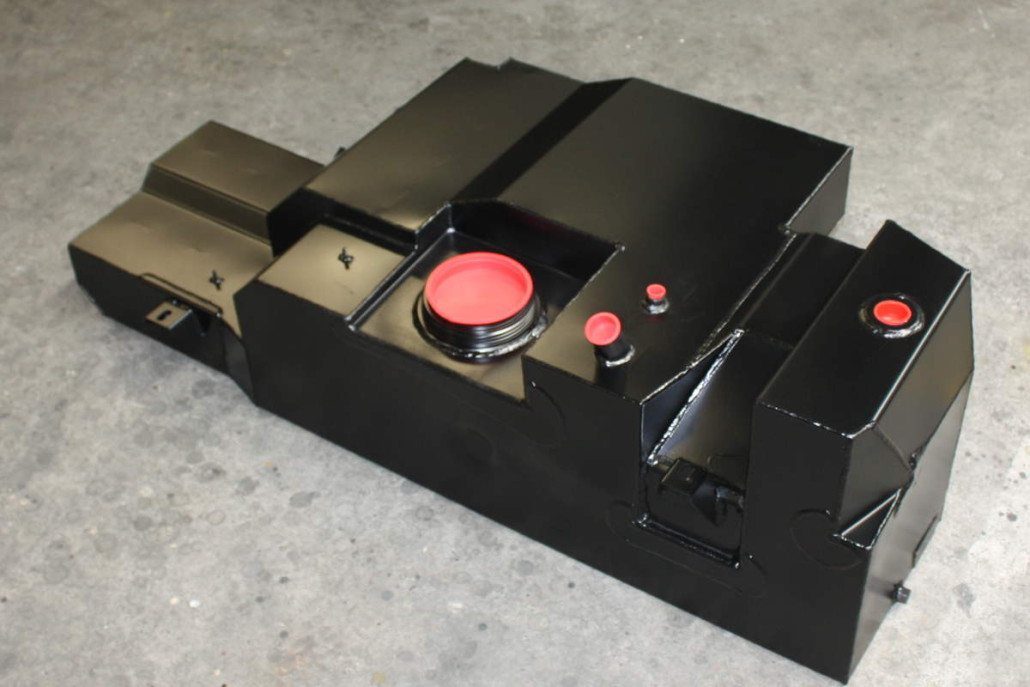

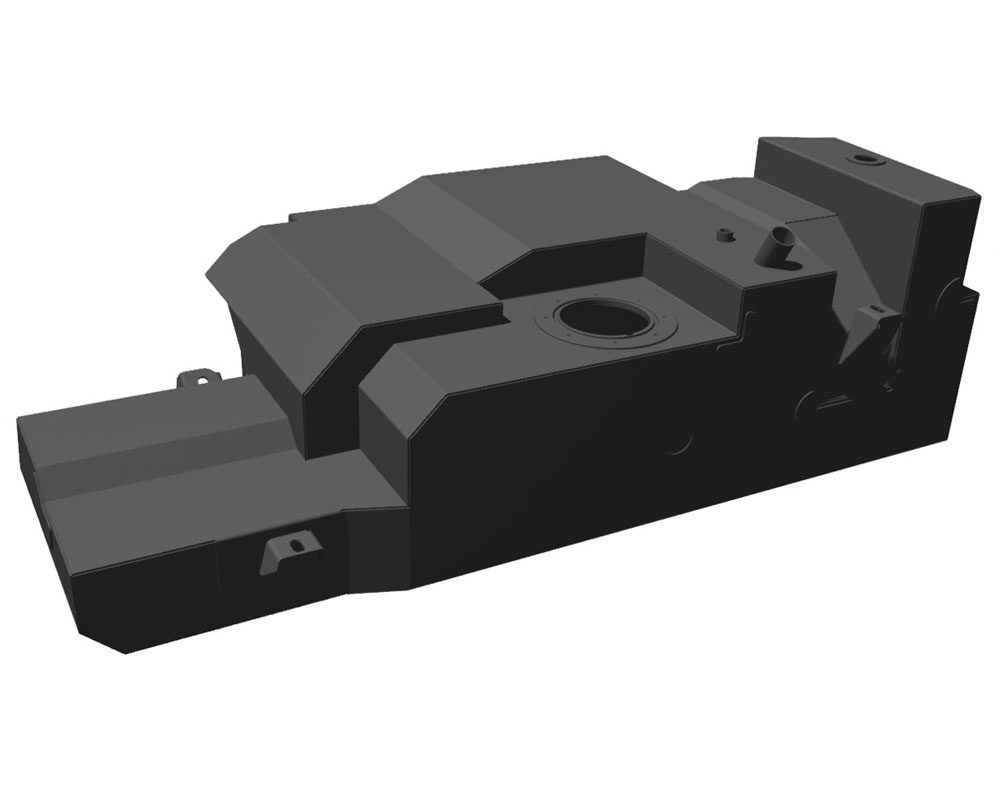

Key features of the Holden Colorado Replacement Long Range Fuel Tank

1
2
3
4
5
6
7
8
1

Tapered approach angle to reduce frontal impact and improve ramp over clearance

2

Internal baffling system to prevent fuel slosh and strengthen tank structure

3

Gusseted brackets with double thickness pads to spread tank mounting loads

4

Fuel pump sender flange designed to re-use vehicles original equipment

5

Roll over check valve and expansion box for fuel expansion and venting

6

filler tube, connects to vehicles original filling point

7

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

8

Cushion clamp locators to retain fuel lines and prevent damage and kinking

Step by Step DIY instructions supplied

The Brown Davis Holden Colorado tank comes with step by step instructions that walk you through every step of the install.

Vehicle Driving Range

FIGURES BASED ON 4X4 LS CREW CAB 2.8L DIESEL– AS QUOTED BY HOLDEN

MANUAL 7.9 LITRES PER 100KM

  • –
    –
  • 76 Litre Standard Tank
  • 133 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (7.9T)
  • 962.03km
  • 1683.54km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 76 Litre Standard Tank
  • 75% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

75% INCREASE IN FUEL CAPACITY

Compatibility

Confirmed fitment

  • Models

    2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

              • 4 WHEEL DRIVE (4X4) 2.8L DIESEL – SINGLE CAB, SUPER CAB, CREW CAB
              • FITS MODELS WITH DUAL TAIL SHAFT
              • FITS BOTH AUTO AND MANUAL MODELS

Standard vehicles features

  • Distance till empty

    In short, the distance to empty function on your trip computer will not remain accurate with your new tank. Your vehicles ECU has the volume of the original tank calibrated to it. As the Distance to Empty counts down, the float starts to move from Full to empty, because the volume of the tank has changed dramatically without changing any reference data for the ECU to base it’s calculations on, the Distance to Empty is incorrect.



    Your fuel gauge will remain accurate, as the float inside the tank will indicate how much fuel is inside the tank, so your readings going from Full, to ¾ to ½ right down to empty will remain accurate as it is now. Your average fuel consumption calculations will remain accurate too, just not DTE.



    What we tell our customers is that most or our Long Range Tanks will tend to ‘hang’ on full for a while longer than it did originally, simply put there’s more volume to be used before the float starts to move downward. Your low fuel warning light will work as intended.



    The best tip we culd give you is to reset your trip meter every time you fill your tank, over time you’ll be able to establish how far you can travel in different driving conditions.

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Filler may need relocating after tank fitment. Some under tray draws may interfere with tank.

  • Exhuasts

    Fits with most aftermarket exhuasts – fits most 3′ exhaust. Confirmed on Redback, Big Boar and Taipan

International vehicles

  • Confirmed fitment

    South Africa, Thailand / Asia

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.

Check out our Range of products for the Holden Colorado

Brown Davis Product now Available Online

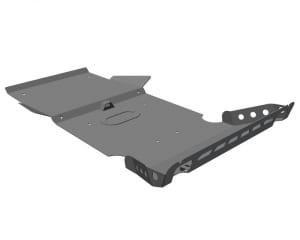

Under Vehicle Protection
