MAZDA BT50 (2011-PRESENT)

145 LITRE REPLACEMENT LONG RANGE FUEL TANK

The Mazda BT50 has proven itself not just on-road but off-road. Whether driving between jobs sites as a tradie or tackling the Kimberley the BT50 is perfectly suited. The Brown Davis replacement long range fuel tank has been designed with this in mind. The tank sits at the same height as the vehicles standard tank making sure your ground clearance and ramp over are not effected. The Mazda BT50 replacement fuel tank is also fitted with the Brown Davis swirl pot system so even on the steepest angles the in-tank fuel pump will always receive fuel. More information on the massive driving range increase and product compatibility can be found below.

LIGHTFORCE MAZDA BT50

The Lightforce BT50 has been all over Australia fitted with a Brown Davis Long Range Fuel Tank and Underbody Protection. Here it is on a YOUR 4X4 trip crossing the Simpson Desert.

Specifications

PART NUMBER: FRPXR2
TANK TYPE: REPLACEMENT
CAPACITY:  150 LITRE
FILLER POINT:STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANDARD TANK
FITTING TIME: 2 hour/s

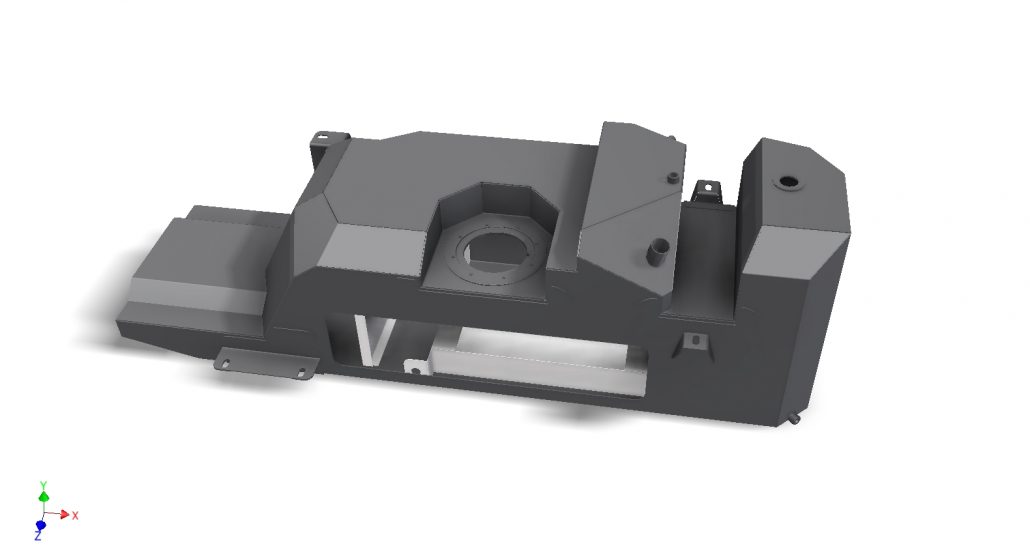

Key features of the Mazda BT-50 Replacement Long Range Fuel Tank

1
2
3
4
5
6
7
8
1

Tapered approach angle to reduce frontal impact and improve ramp over clearance

2

Internal baffling system to prevent fuel slosh and strengthen tank structure

3

Gusseted brackets with double thickness pads to spread tank mounting loads

4

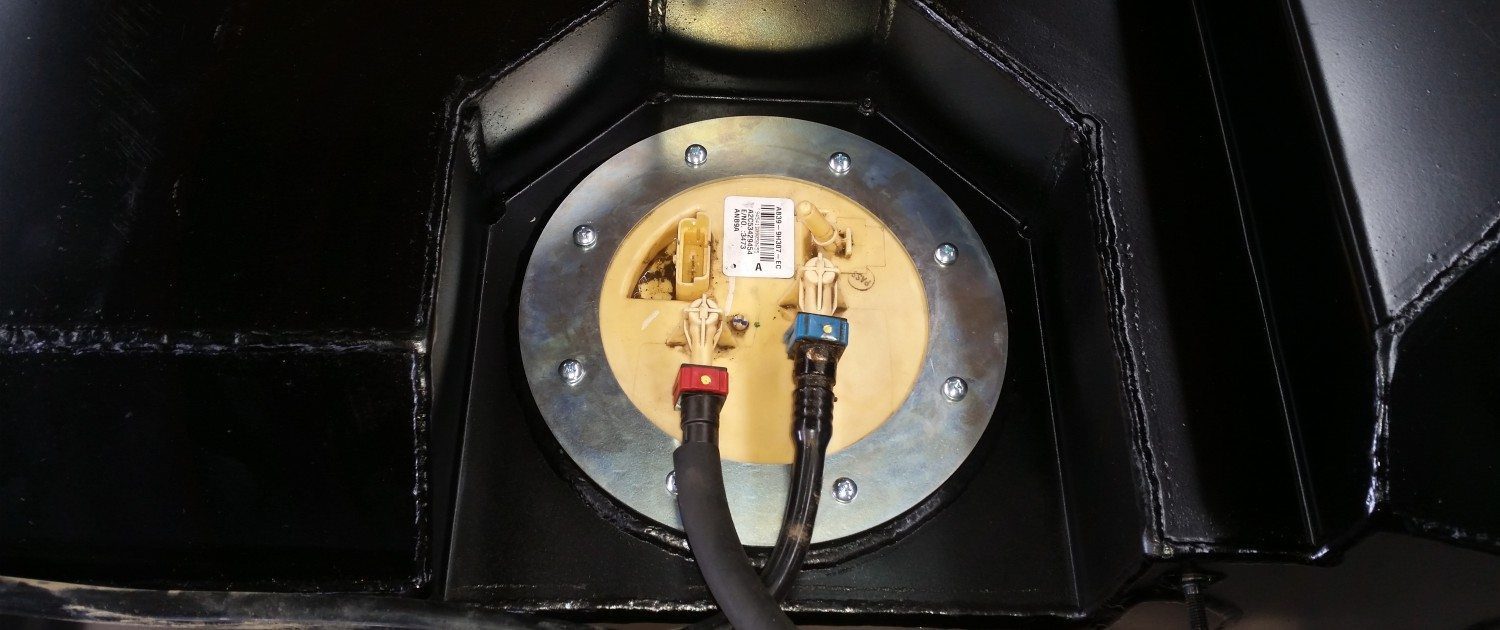

Fuel pump sender flange designed to re-use vehicles original equipment

5

Roll over check valve and expansion box for fuel expansion and venting

6

filler tube, connects to vehicles original filling point

7

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

8

Drain plug- for draining bad fuel

Step by Step DIY instructions supplied

The Brown Davis Ford Mazda BT-50 tank comes with step by step instructions that walk you through every step of the install.

Vehicle Driving Range



FIGURES BASED ON 4X2 2.2L DISEL– AS QUOTED BY MAZDA



MANUAL 7.6 LITRES PER 100KM / AUTOMATIC 8.9 LITRES PER 100KM


  • 80 Litre Standard Tank
  • 145 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (7.6T) / Auto (8.9LT)
  • 1052.63km / 898.87km
  • 1907.89km / 1629.21km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 80 Litre Standard Tank
  • 81.25% Increase in Capacity



FIGURES BASED ON 4X4 3.2L DIESEL– AS QUOTED BY MAZDA



MANUAL 8.9 LITRES PER 100KM / AUTOMATIC 9.2 LITRES PER 100KM


  • 80 Litre Standard Tank
  • 145 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (8.9T) / Auto (9.2LT)
  • 898.87km / 869.56km
  • 1629.21km / 1576.08km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 80 Litre Standard Tank
  • 81.25% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

81.25% INCREASE IN FUEL CAPACITY

Compatibility

Confirmed fitment

2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

        • 2 WHEEL DRIVE (4X2) 2.2L & 3.2 DIESEL – SINGLE CAB, SUPER CAB, DUAL CAB (INCLUDING HIGH RIDER)
        • 4 WHEEL DRIVE (4X4) 3.2L DIESEL – SINGLE CAB, SUPER CAB, DUAL CAB
  • Models

          • 2 WHEEL DRIVE (4X2) 2.2L & 3.2 DIESEL – SINGLE CAB, SUPER CAB, DUAL CAB (INCLUDING HIGH RIDER)
          • 4 WHEEL DRIVE (4X4) 3.2L DIESEL – SINGLE CAB, SUPER CAB, DUAL CAB

Standard vehicles features

  • Distance till empty

    In short, the distance to empty function on your trip computer will not remain accurate with your new tank. Your vehicles ECU has the volume of the original tank calibrated to it. As the Distance to Empty counts down, the float starts to move from Full to empty, because the volume of the tank has changed dramatically without changing any reference data for the ECU to base it’s calculations on, the Distance to Empty is incorrect.

    Your fuel gauge will remain accurate, as the float inside the tank will indicate how much fuel is inside the tank, so your readings going from Full, to ¾ to ½ right down to empty will remain accurate as it is now. Your average fuel consumption calculations will remain accurate too, just not DTE.

    What we tell our customers is that most or our Long Range Tanks will tend to ‘hang’ on full for a while longer than it did originally, simply put there’s more volume to be used before the float starts to move downward. Your low fuel warning light will work as intended.

    The best tip we culd give you is to reset your trip meter every time you fill your tank, over time you’ll be able to establish how far you can travel in different driving conditions.

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Filler may need relocating after tank fitment. Some under tray draws may interfere with tank.

  • Exhausts

    Fits with most aftermarket exhausts. Confirmed on Redback, Big Boar and Taipan.

  • Underbody Dual Battery Trays

    Fits with most dual battery trays – confirmed on ARB, Pirahna and the BD Tray

International vehicles

  • Confirmed fitment

    South Africa, Thailand / Asia

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.
