FORD RANGER RAPTOR (2018-PRESENT)

REPLACEMENT LONG RANGE FUEL TANKS

With coil rear suspension and a completely different chassis we knew the likelyhood of our 150 litre Ford Ranger replacement tank fitting in the Raptor was always slim. However, with these difference comes a vehicle more suited to offroad touring. Whether crossing the Simpson Desert or tracking the hills in the Vic High Country the Ranger Raptor has all bases covered. Our below options of replacement fuel tanks has this in mind. For the average tourer we have a tank the sits at the same height as standard tank and for the more extreme offroaders we have a “high clearance” tank that sits higher than standard.

Specifications

STANDARD CLEARANCE 150 LITRE REPLACEMENT FUEL TANK

PART NUMBER: FRR18R1
TANK TYPE: REPLACEMENT
CAPACITY: 150 litres
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANARD TANK
FITTING TIME: 2.5 hour/s
MODIFICATIONS: NONE REQUIRED- NO REMOVAL OF SPARE WHEEL

HIGH CLEARANCE  125 LITRE REPLACEMENT FUEL TANK (45mm higher then standard)

PART NUMBER: FRR18R2
TANK TYPE: REPLACEMENT
CAPACITY: 125 litres
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANARD TANK
FITTING TIME: 2.5 hour/s
MODIFICATIONS: NONE REQUIRED- NO REMOVAL OF SPARE WHEEL

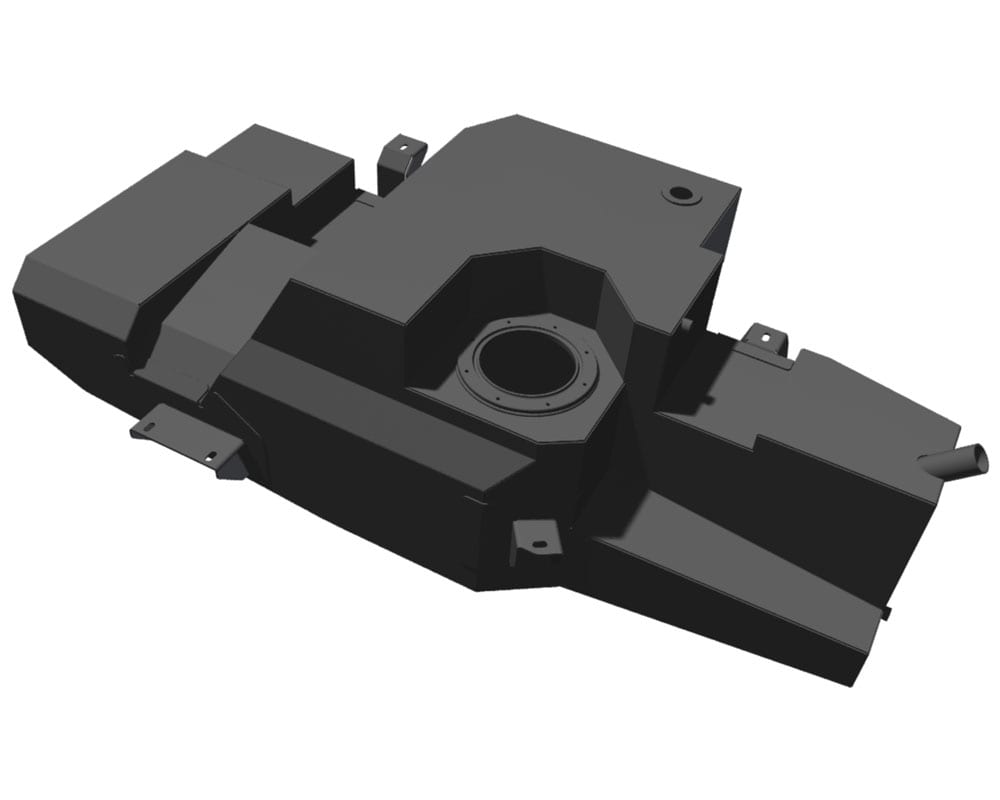

Key features of the Ford Ranger Raptor Long Range Fuel Tank

1
2
3
4
5
6
1

TAPERED APROACH ANGLE

2

GUSSETED DOUBLED SKINNED BRACKETS

3

SENDER FLANGE DESIGNED TO EXCEPT STANDARD FUEL PUMP AND SENDER

4

FAST FILL BREATHE- ALLOWS FOR HIGH FLOW DIESEL BOWERS

5

FUEL TANK FILLER POINT- JOINS TO VEHICLES STANDARD FILLER POINT

6

REAR MOUNTED DRAIN PLUG FOR DRAINING CONTAMINATED FUEL

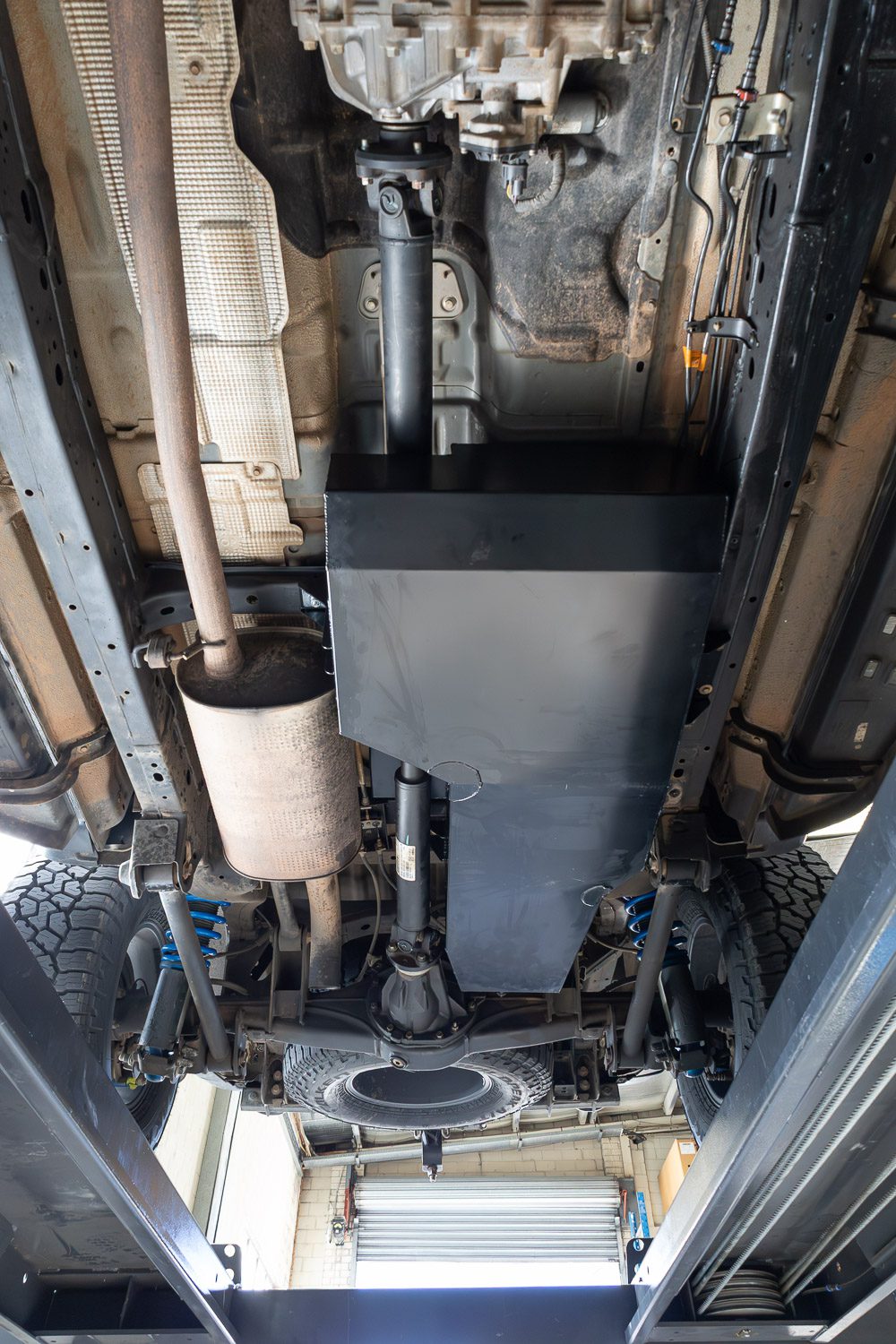

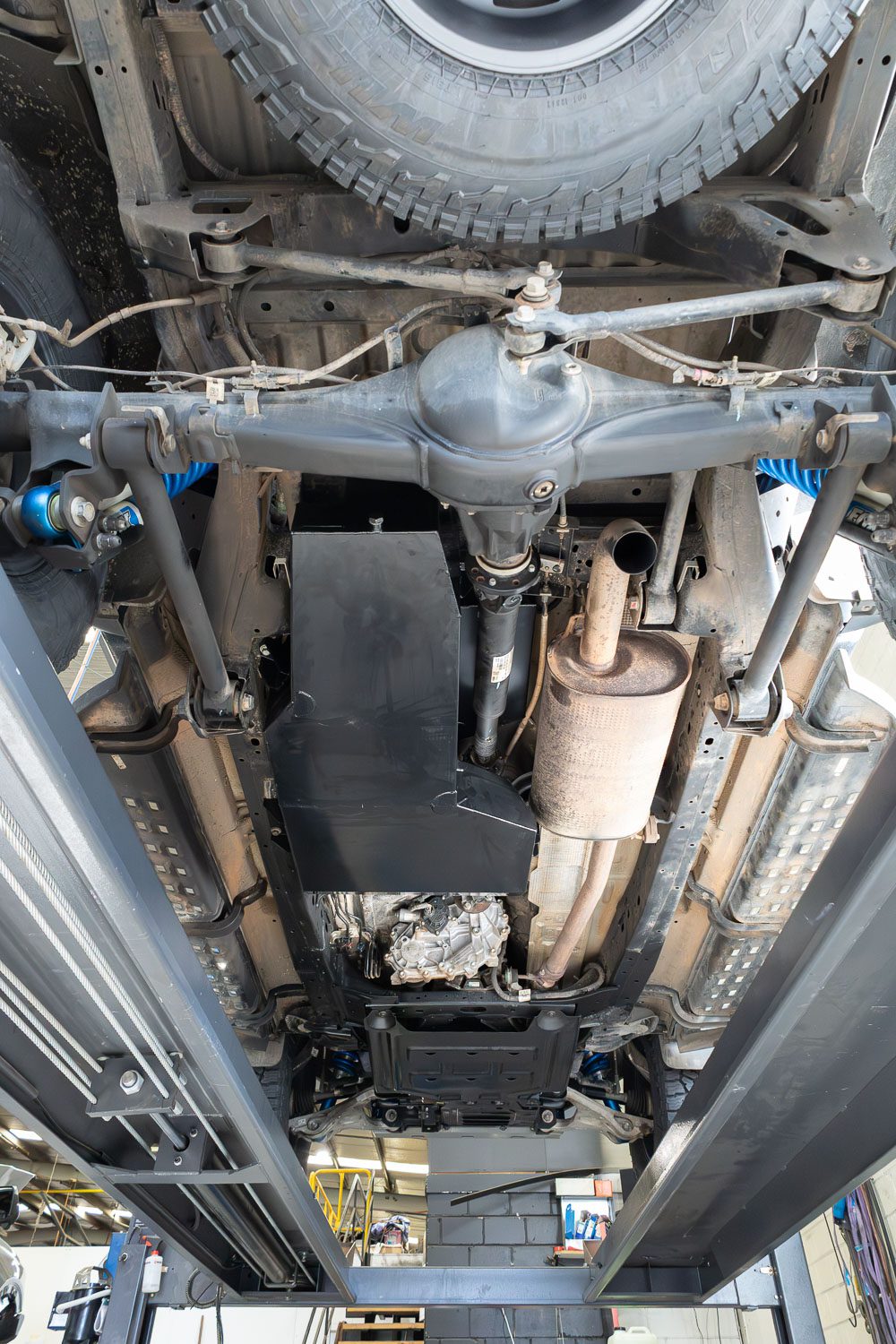

STANDARD HEIGHT REPLACEMENT TANK SHOWN BELOW

STANDARD HEIGHT REPLACEMENT TANK SHOWN BELOW
