Products · Long range fuel tanks
Carpet cleaning and equipment tanks
A stand-alone petrol tank under your van to run your carpet cleaning or pressure equipment. The van’s own tank keeps running the engine, and no fuel is stored inside the cabin.
4WD 24/7
Why under the vehicle?
Keep the fuel out of the cabin
Most current vans are diesel, so the vehicle no longer has petrol on board and pumping from the standard tank isn’t an option. Our tanks fit under the vehicle and come in different capacities depending on room, on average about 40–70 L.
Pat Callinan’s 4X4 Adventures
How it works
Fuel under the floor, not in the back

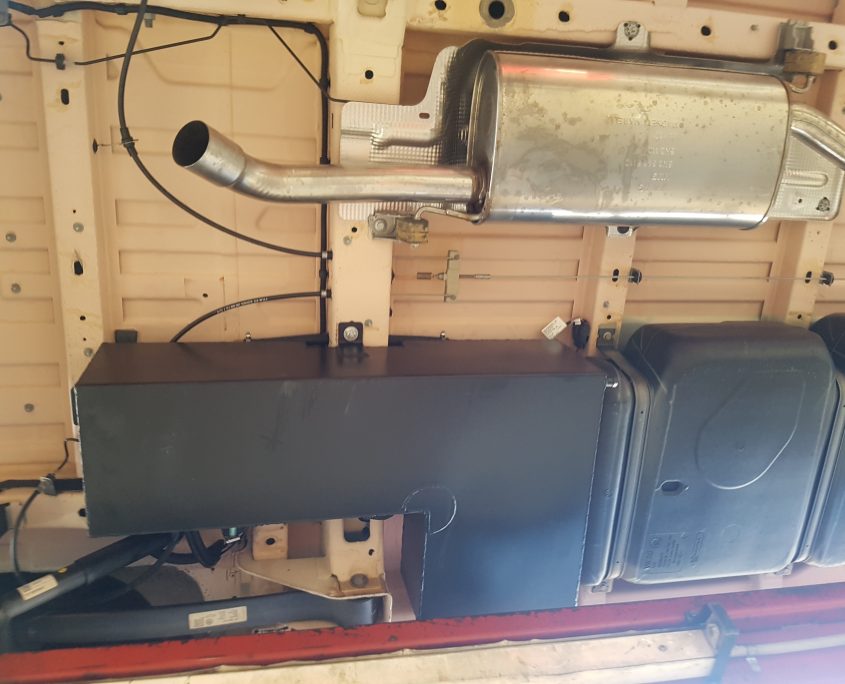

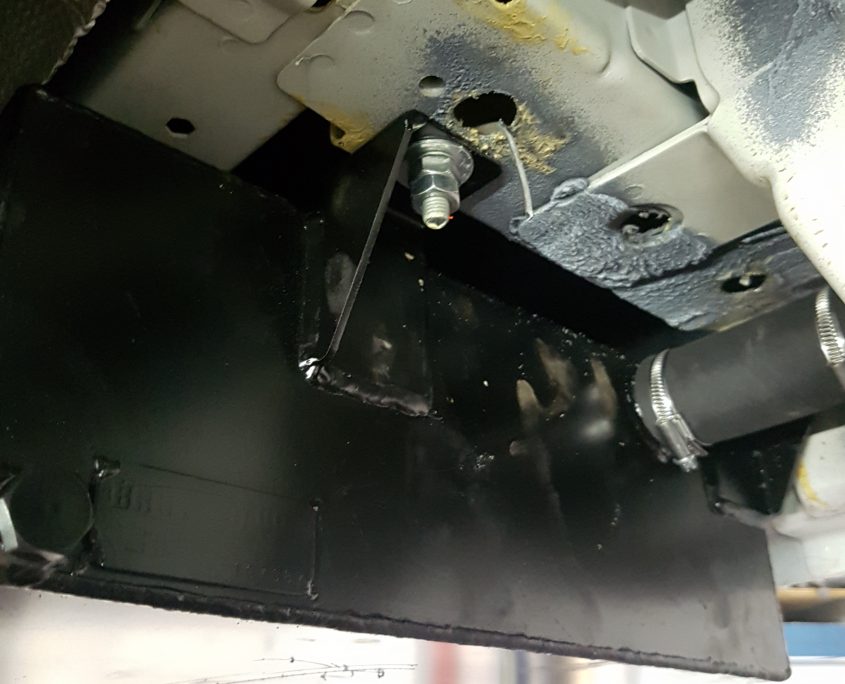

The machine in your cargo area draws petrol straight from a Brown Davis tank mounted under the van.
Brown Davis petrol tankA stand-alone tank mounted under the van, outside the cabin. Usually around 40–70 L depending on the room under your van.
Fuel line to the machinePetrol runs straight from the tank to the machine. You fill it at the bowser, like any other tank.

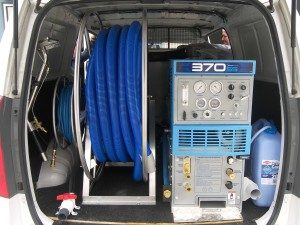

Your cleaning machineThe petrol engine on your carpet cleaning or pressure equipment draws from the Brown Davis tank.
Factory tank untouchedMost current vans are diesel. The van’s own tank keeps running the engine, completely separate.
Nothing flammable insideNo jerry cans in the cargo area, no vapour building up next to your machine, your gear or you.
4WD 24/7
Storing fuel safely
Why fuel doesn’t belong inside your van
Vapour builds up
Petrol fumes escaping inside a closed van can form an explosive fuel and air mix, sitting right next to your machine and your gear.
Ignition is everywhere
Remote locking, interior lights, the vehicle’s electrics and the machine itself can all spark. One spark in a fume-filled van is all it takes.
It’s regulated
Petrol is a Class 3 dangerous good. Carrying it inside a vehicle is limited by law, and it must be in approved containers, secured and kept away from ignition sources.
Ventilation is critical
Regulators say airflow is the key to reducing fire and explosion risk inside a vehicle. A loaded cargo van with the doors shut has very little of it.
Cans move and leak
Jerry cans have to be restrained upright and sealed. On a working day of loading, unloading and refilling, that’s hard to keep up, and every pour risks a spill.
The safer answer
A Brown Davis tank under the van keeps petrol out of the cabin altogether. Fill at the bowser and the machine draws straight from the tank.
Molly Dixon
The legal side
What the rules say about fuel in vehicles
A plain-English summary of state dangerous goods guidance. Rules differ by state and change over time, so check with your state regulator for your situation.
Dangerous goods laws apply
Petrol is a Class 3 flammable liquid. Tradespeople can carry small amounts as “tools of trade”, but only within set limits.
Limits in enclosed spaces
For Class 3 goods carried in a passenger compartment or enclosed space, regulators set a combined maximum of 250 L. Above the concession limits, full commercial dangerous goods rules apply.
Approved, secured, separated
Containers must be fit for purpose, undamaged and marked, like jerry cans to AS 2906. They must be secured, kept away from ignition sources and incompatible goods, and well ventilated.
Reduce the risk
Any risk to people or property has to be eliminated, or reduced as far as practicable. Moving the fuel outside the cabin is the simplest way to do that.
Sources: WorkSafe Victoria: transporting dangerous goods as tools of trade · Business Queensland: dangerous goods for personal or tools of trade use · WorkSafe WA: transporting containers of petrol. General information only, not legal advice.
Find your van
Part numbers by vehicle
| Part no. | Make | Model | Year / series | Notes | Litres |
|---|---|---|---|---|---|
| THICCA2 | Toyota | Hiace | 2004–2019 | LWB · does not fit 5-door crew van | 50 |
| THICCA1 | Toyota | Hiace | 2004–2019 | SLWB · 9 cubic metre body | 60 |
| THICCA3 | Toyota | Hiace | 2004–2019 | LWB 5-door crew van, 2560 mm | 60 |
| FTVCCA5 | Ford | Transit Custom | 2013–present | LWB 3310 mm | 65 |
| FTVCCA6 | Ford | Transit | 2013–present | 350L FWD, 3750 mm wheelbase | 65 |
| MBVCCA1 | Mercedes-Benz | Vito | 2003–present | 109 CDI | — |
| RMCCA1 | Renault | Master | 2010–present | DCI-50, FWD, 3680 mm | 105 |
| RMCCA2 | Renault | Master | 2010–present | RWD twin tyre, 3680 mm | 83 |
| IVDCCA1 | Iveco | Daily | 2014–present | 3250 mm | — |
4WD 24/7
Buying an equipment tank
Talk to Brown Davis direct
Not sold through our dealersEquipment tanks are only available direct from Brown Davis, and fitting is only done at our Melbourne, Brisbane and Perth offices.
Talk to us directlyCall or email your nearest Brown Davis office with your van’s make, model, year and wheelbase, and the machine you run.
Vehicle inspectionEvery van is different underneath. We may need to inspect yours to see what tank will fit and where.
Tank and quoteWe confirm the right tank for your van and machine, and give you a fitted price.
Fitted by Brown DavisYour tank is fitted at our Melbourne, Brisbane or Perth office.
