VAN, CAMPER-VAN, CAB CHASSIS AND MOTORHOME LONG RANGE FUEL TANKS

Brown Davis offers an extensive range of long-range fuel tanks designed to enhance the travel experience for motorhome and camper van owners. Our tanks are engineered to fit a variety of vehicles, including popular models like the Mercedes-Benz Sprinter, Toyota Hiace, and Iveco Daily, among others. Whether you have a cab chassis with a motorhome body or a van that has been converted into a camper, we have solutions tailored to meet your needs.

Our long-range fuel tanks are particularly valuable for those who venture into remote or less accessible areas. In some cases, our tanks can effectively double the vehicle’s fuel capacity, allowing travelers to cover greater distances without frequent stops at fuel stations. This is especially advantageous for those exploring off-the-beaten-path destinations where fuel stations might be sparse.

By significantly extending the range of your vehicle, Brown Davis helps ensure that your adventures are more about enjoyment and less about planning your next fuel stop. With our durable and reliable tanks, you can focus on the journey and the destinations, knowing that you have the fuel capacity to take you further into the wilderness or to that next hidden gem on your itinerary.

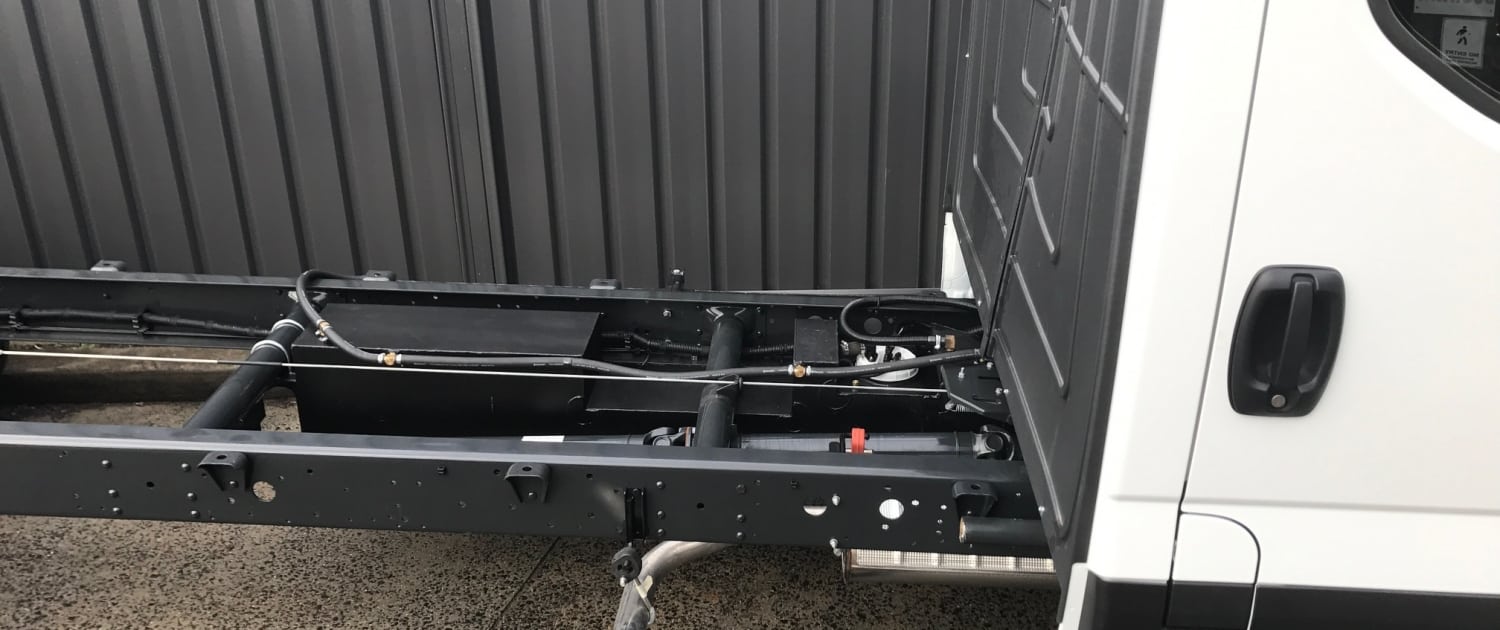

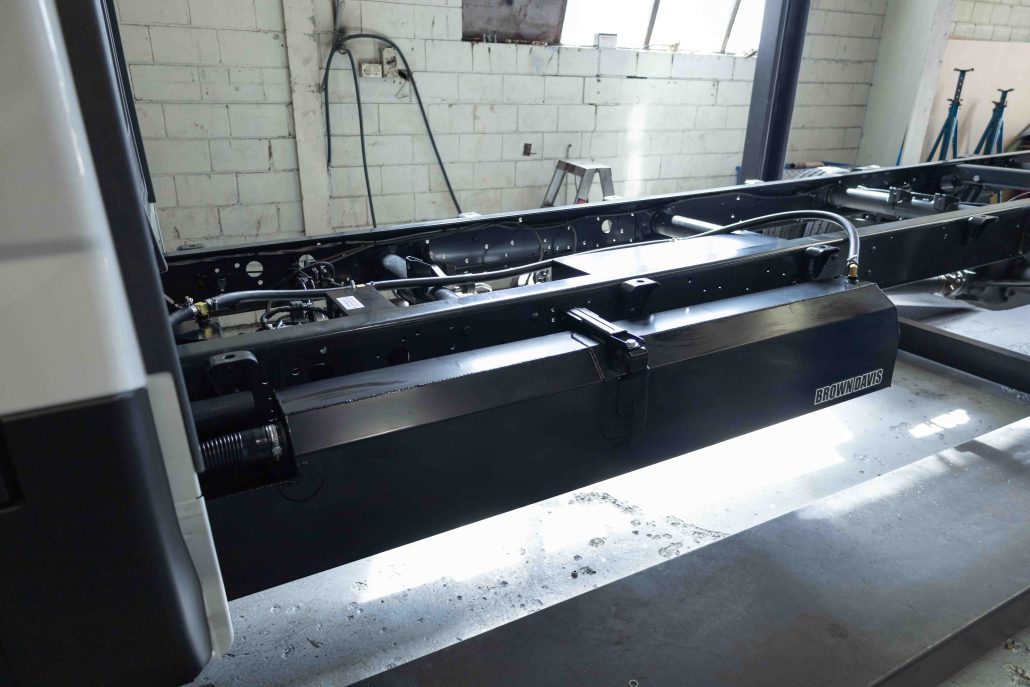

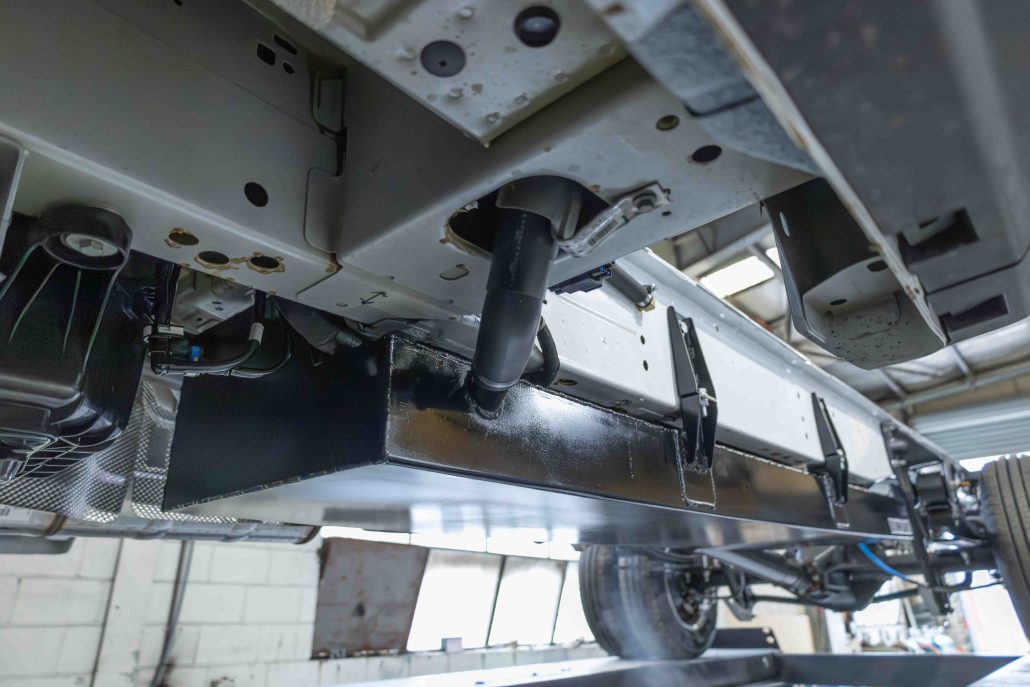

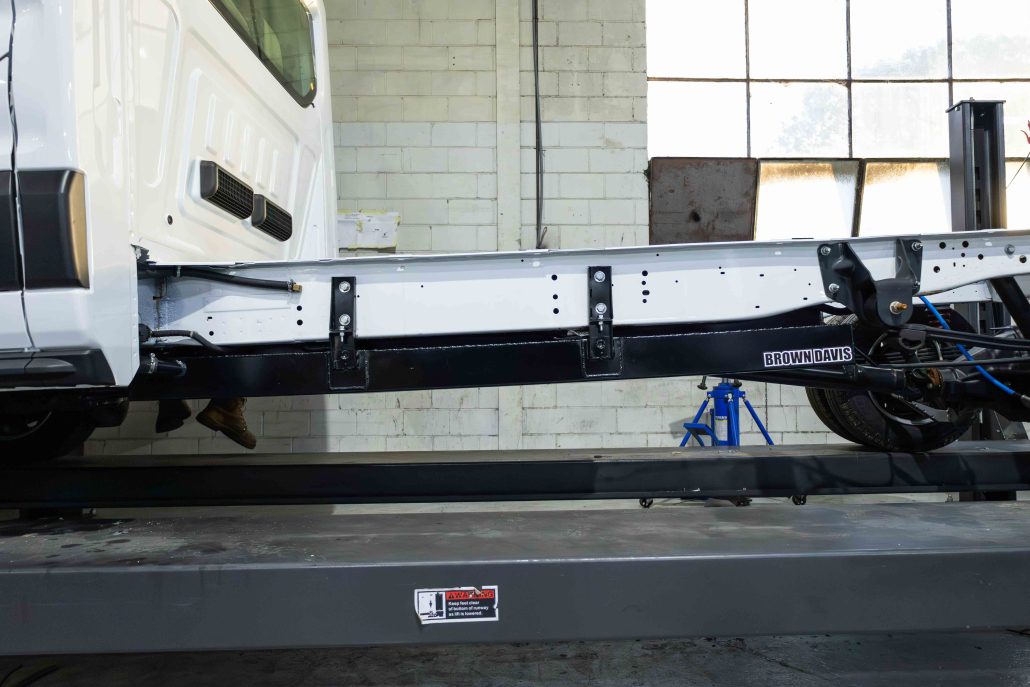

CAB CHASSIS / MOTORHOME TANK FITTED

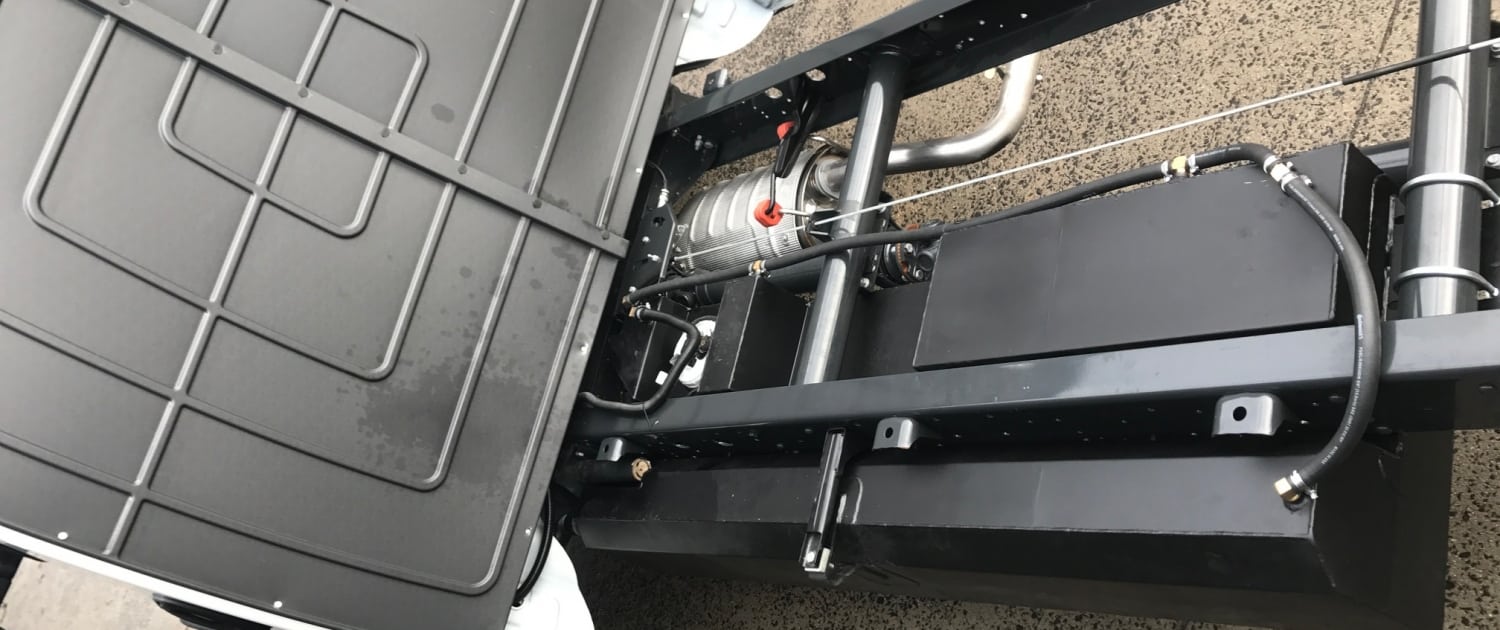

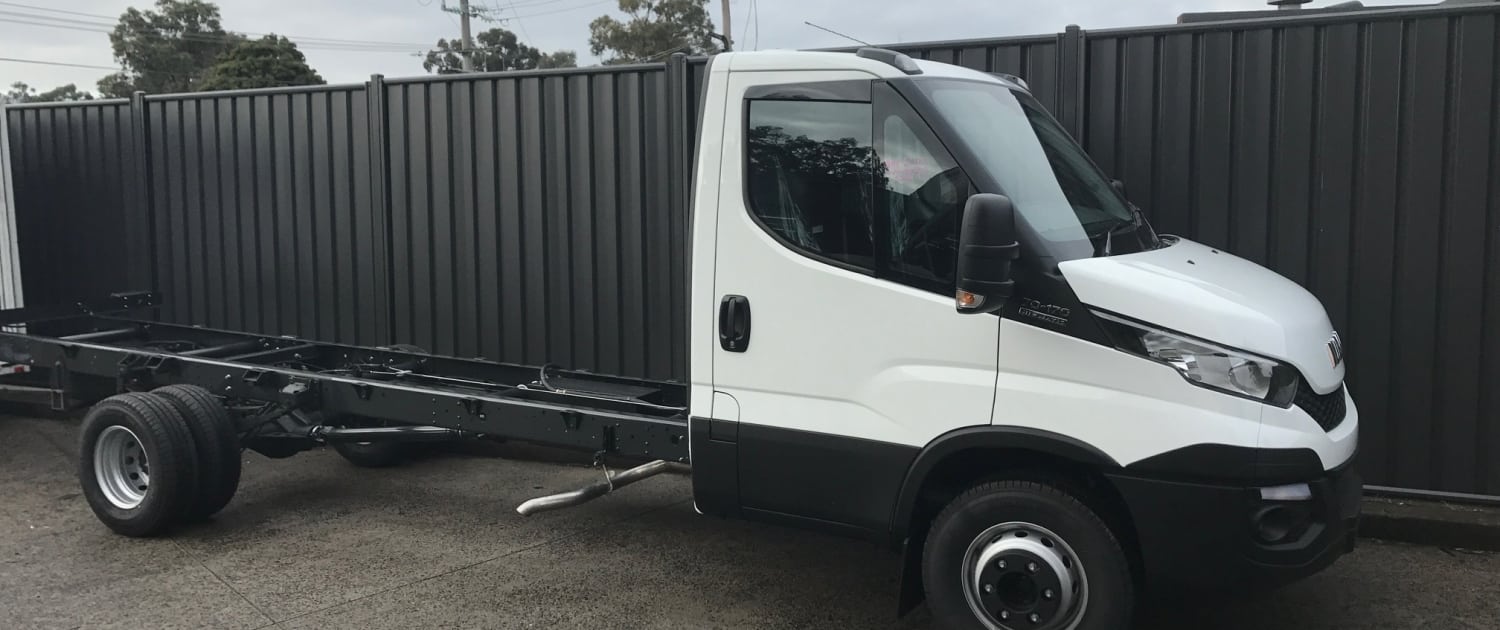

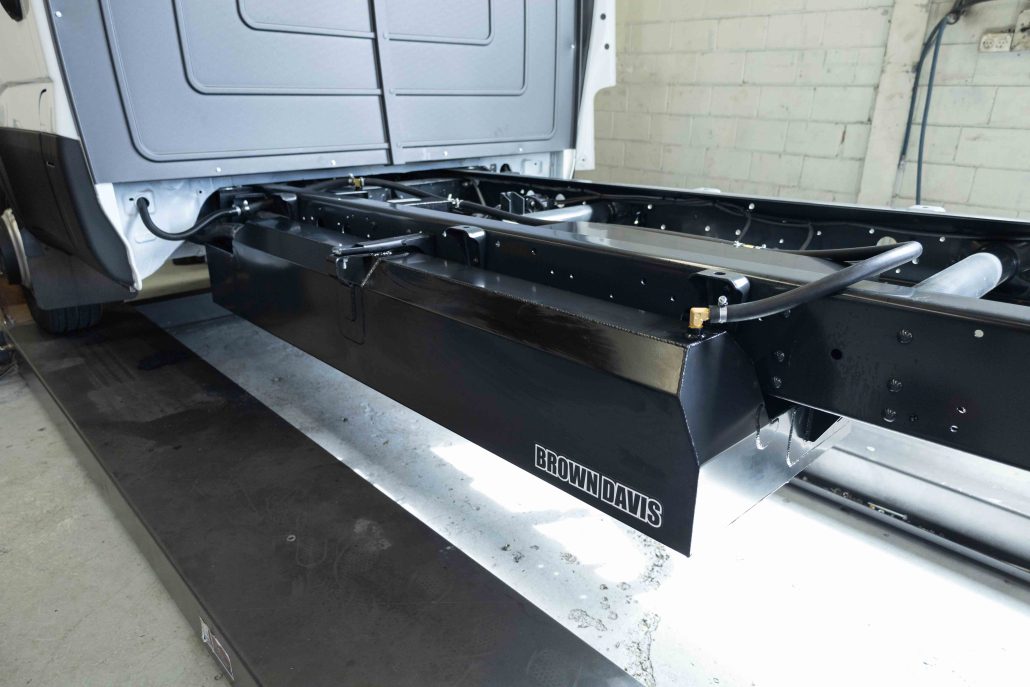

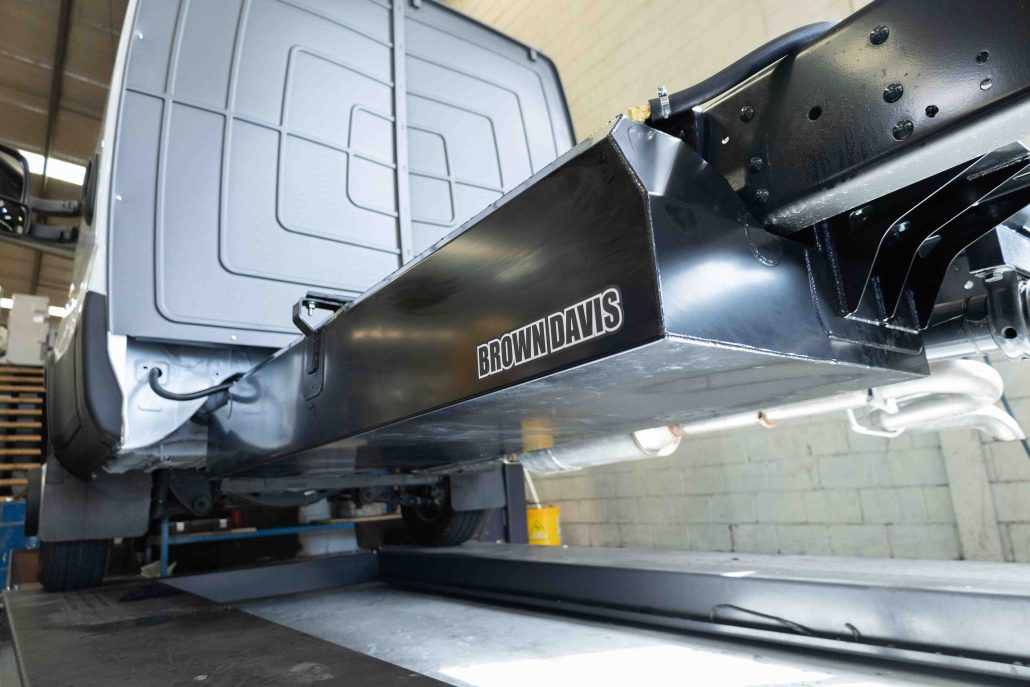

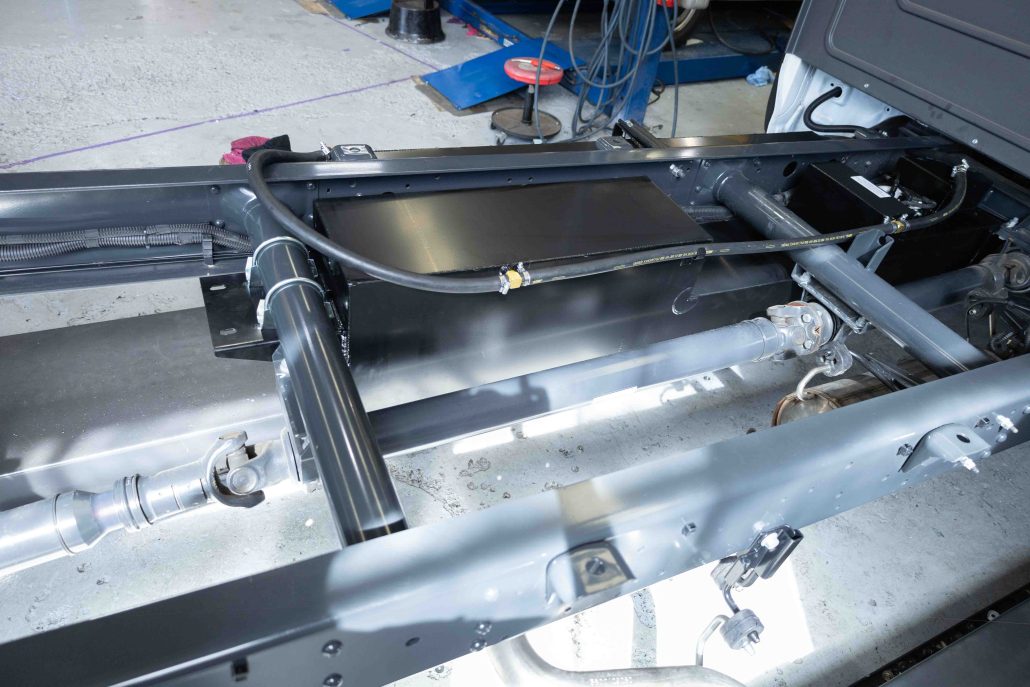

IVECO DAILY SINGLE CAB CHASSIS- 220LT LONG RANGE FUEL TANK

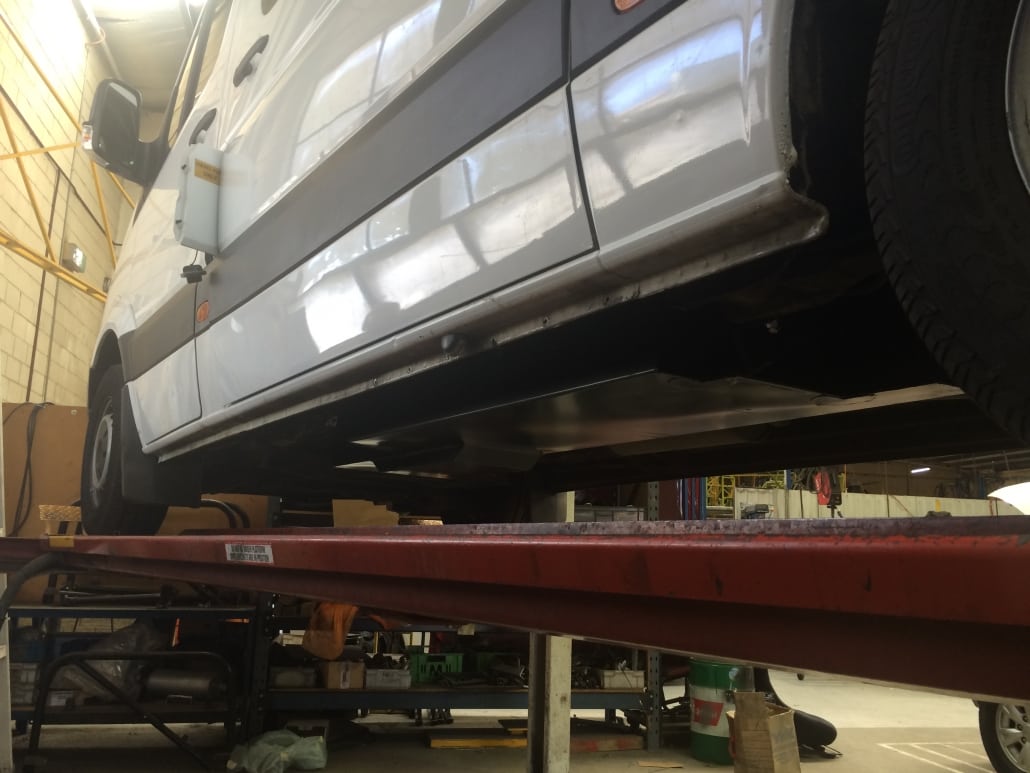

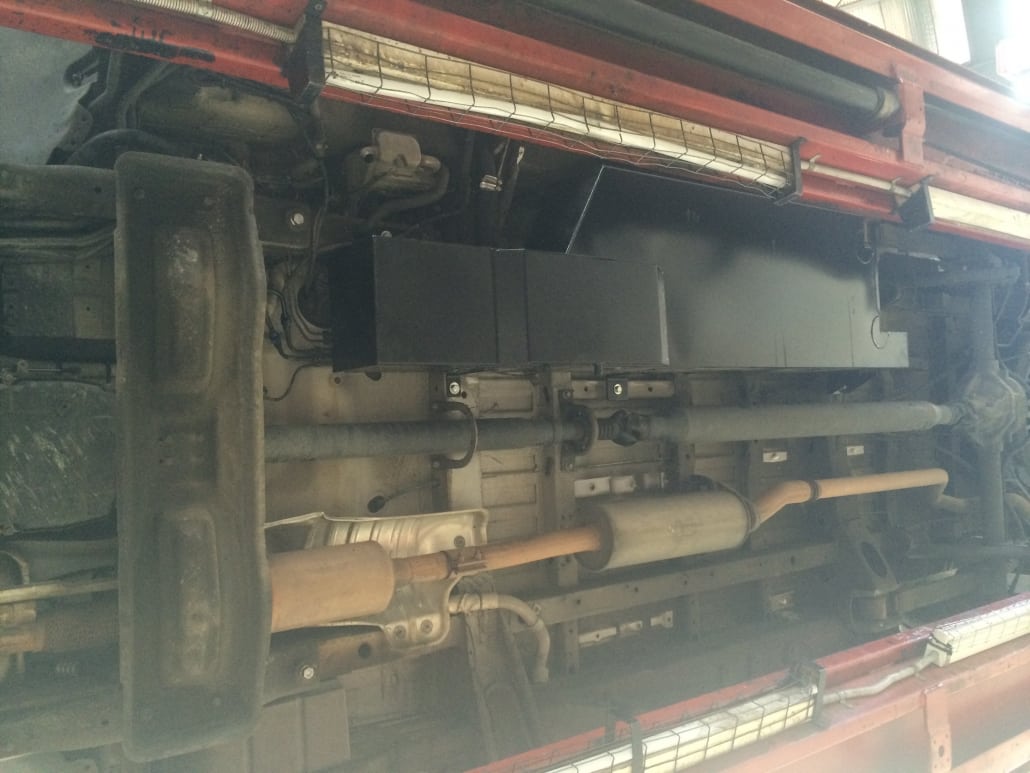

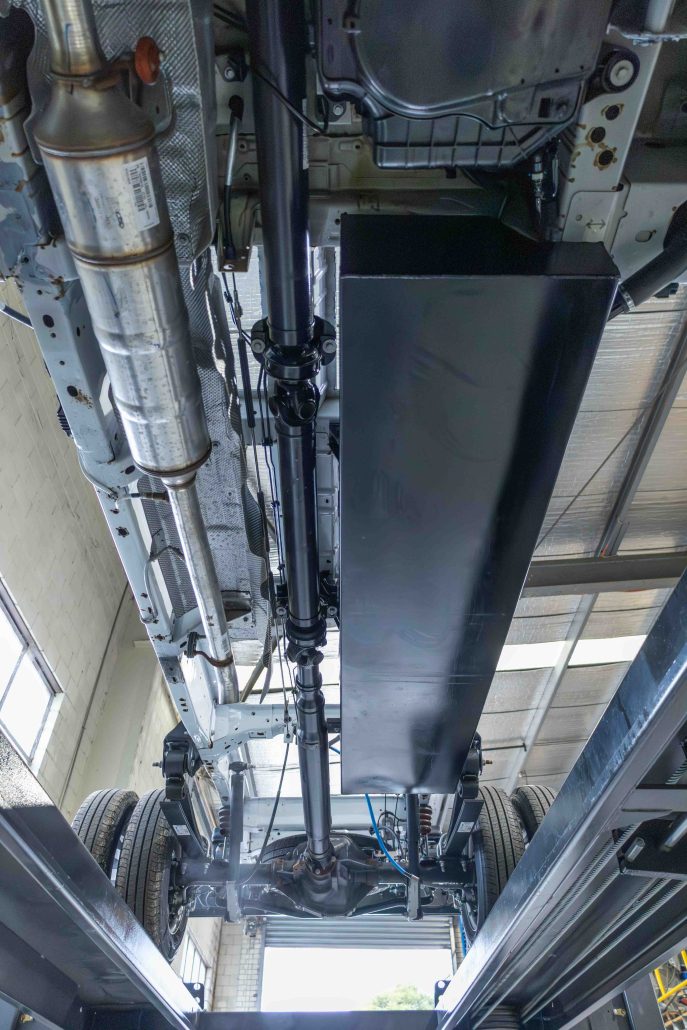

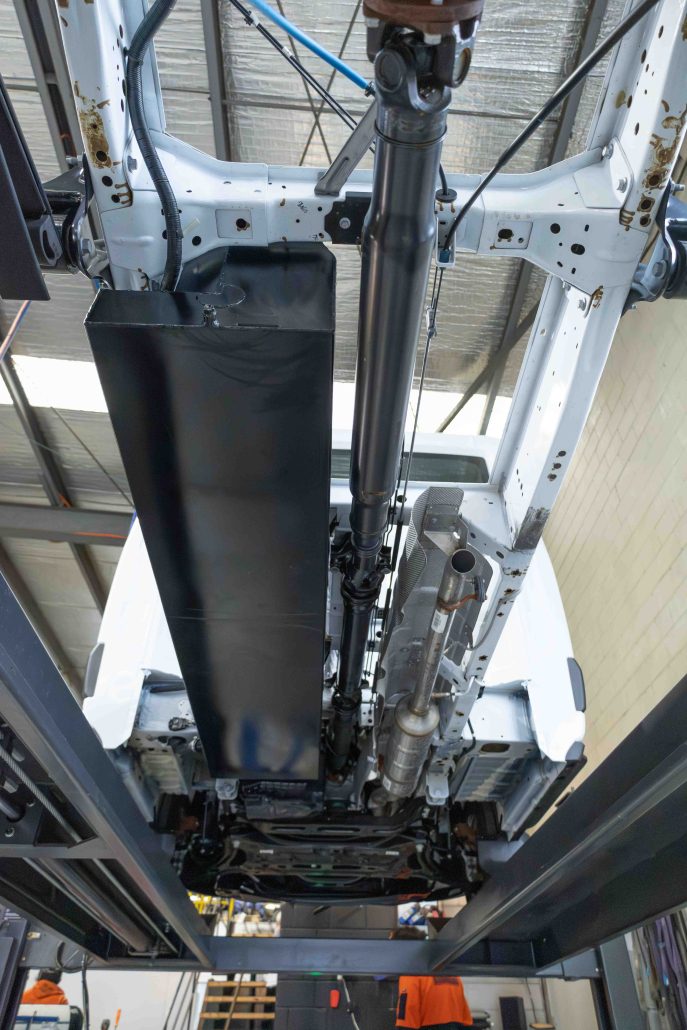

VAN AND CAMPERVAN TANK FITTED

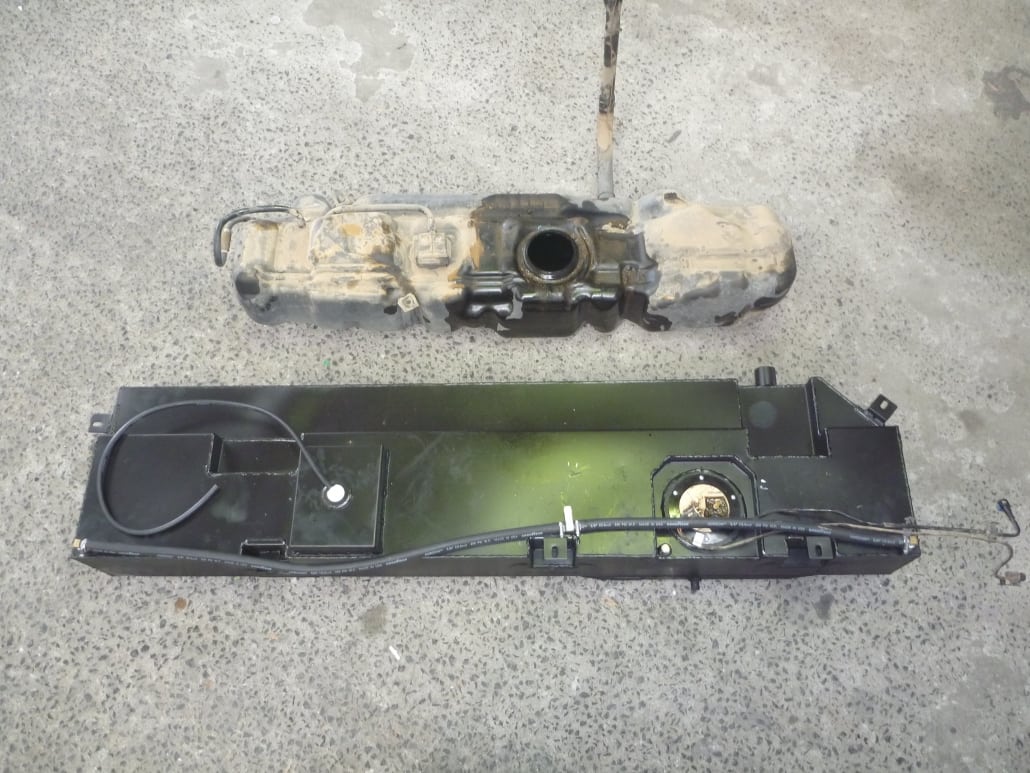

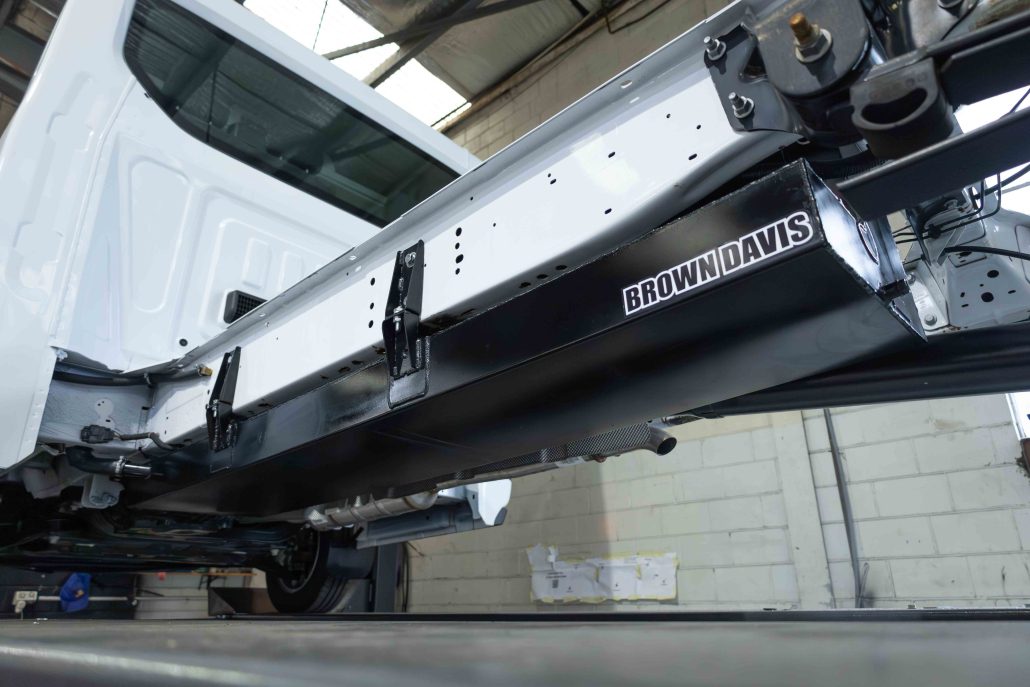

MECEDES BENZ SPRINTER VAN- 170LT REPLACEMENT TANKS

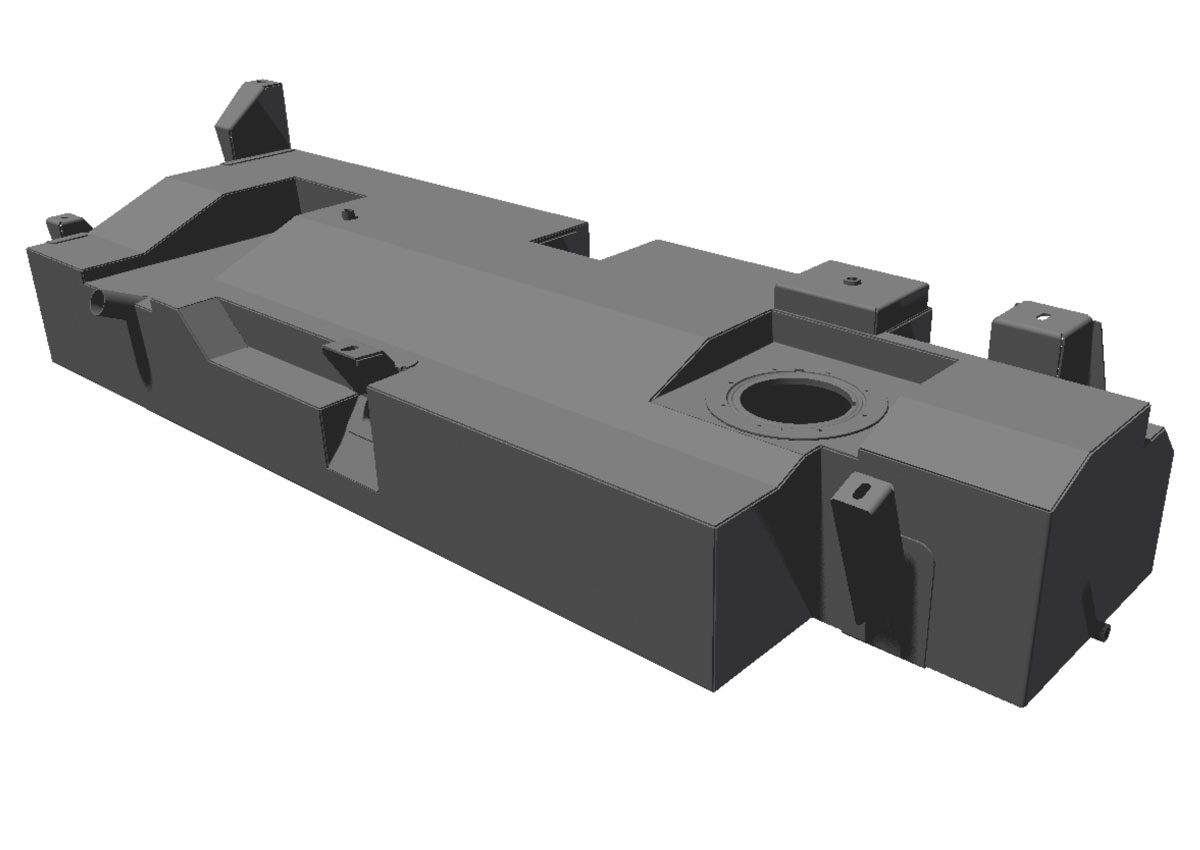

Key features of our van, camper-van, cab chassis and motorhome long range fuel tanks

1
2
3
4
5
6
7
8
1

Internal baffling system to prevent fuel slosh in these large fuel tanks. Also helps to strengthen tank structure

2

Fuel pump sender flange designed to re-use vehicles original equipment

3

filler tube, connects to vehicles original filling point

4

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

5

Drain plug to drain contaminated fuel

6

Multiple breathers to help with filling of large tank

7

Internal swirl pot to keep fuel around the pick up point. This is must in a large fuel tank

8

Double skinned gusseted brackets to take the load of the extra fuel

MOST POPULAR VAN, CAMPER-VAN, CAB CHASSIS AND MOTORHOME LONG RANGE FUEL TANKS

TOYOTA HIACE VAN- LONG WHEEL BASE, MEDIUM WHEEL BASE, EXTRA LONG WHEEL BASE

IVECO DAILY VAN – MEDIUM WHEEL BASE, LONG WHEEL BASE

IVECO DAILY CAB CHASSIS – MEDIUM WHEEL BASE, LONG WHEEL BASE

MECEDES BENZ SPRINTER VAN- MEDIUM WHEEL BASE, LONG WHEEL BASE

MECEDES BENZ SPRINTER CAB CHASSIS- MEDIUM WHEEL BASE, LONG WHEEL BASE

FORD TRANSIT & TRANSIT CUSTOM

HYUNDAI ILOAD

AND MANY MORE



Brown Davis manufactures a wide range of both Steel and Poly tanks and when it comes to tanks with such high fuel capacity we feel the benefits of having internal baffles and a swirl pot is a must. This is why we manufacture all our larger long range fuel tanks from steel.

STEEL LONG RANGE FUEL TANKS

  • DRAIN PLUG

    ALL BROWN DAVIS STEEL FUEL TANKS COME WITH A DRAIN PLUG FOR DRAINING CONTAMINATED FUEL OR EVEN COLLECTING SOME FUEL FOR A MATE.

  • BAFFLES

    ALL BROWN DAVIS STEEL LONG RANGE FUEL TANKS HAVE INTERNAL BAFFFLES, THIS MINIMIZES FUEL SLOSH AND MOVEMENT WHICH IS CRITICAL WITH THESE LARGE TANKS. ALSO PROVIDING THE TANK WITH GREATER STRENGTH AND INGEGRITY.

  • SWIRL POT

    ALMOST ALL BROWN DAVIS STEEL LONG RANGE FUEL TANKS HAVE AN INTERNAL SWIRL POT. THIS DESIGN TRAPS FUEL AROUND THE PICK UP SO THAT YOU CAN RUN DOWN TO THE LAST FEW LITRES. THIS IS CRITICAL IN LARGE FUEL TANKS SUCH AS THESE

POLY LONG RANGE FUEL TANKS

  • LIGHT WEIGHT

    IF WEIGHT IS CRITICAL IN YOUR VEHICLE ON AVERAGE MOST LONG RANGE POLY TANKS ARE 10-15KG LIGHTER THAN STEEL TANKS.

For 4WDs and tourers planning to head off the beaten track, our aluminized steel Long Range Fuel Tank is the best option.

Building a Brown Davis Tank

Since the beginning, Brown Davis has taken pride in the construction of our tanks, our Next-Gen Ranger tank is no exception. Our tanks are made with quality and care, from the materials we use to the stringent pressure testing, they are prepared for the harshest conditions.

Laser Cut Aluminized Steel

Manufacturing our steel tanks starts with laser cut aluminized steel. With this material, your tank will have the strength and durability of steel, and the anti-corrosive properties of aluminum to make sure their is no rust.

Folded Before Welded

Before welding the tank, we use specialized machinery to fold the laser cut aluminized steel to decrease the amount of time and labor put into welding. Folded parts also have superior strength to welded parts.

High Quality Welding Every Time

Next, our experienced welders add the brackets, swirl pot and baffles to the tank and then weld it all off.  We use jigs to locate the brackets for each individual tank so installation is as consistent and easy as possible for every vehicle.

Pressure Testing

Lastly, we take it through an air pressure test. This involves a soap test, submersion test and a pressure gauge. These techniques help us identify any rare leaks and where they’re coming from. If air isn’t coming out, fuel definitely isn’t.

Building a tank- A walk through with Matt from The Explore Life

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 40+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.
