JEEP WRANGLER JK (2006-PRESENT)
TRANSFER AUXILIARY LONG RANGE FUEL TANKS
Models
JWJKA1- FITS ALL 2 DOOR MODEL- PETROL AND DIESEL
JWJKA2- FITS ALL 4 DOOR MODEL- PETROL AND DIESEL
Specifications / Options

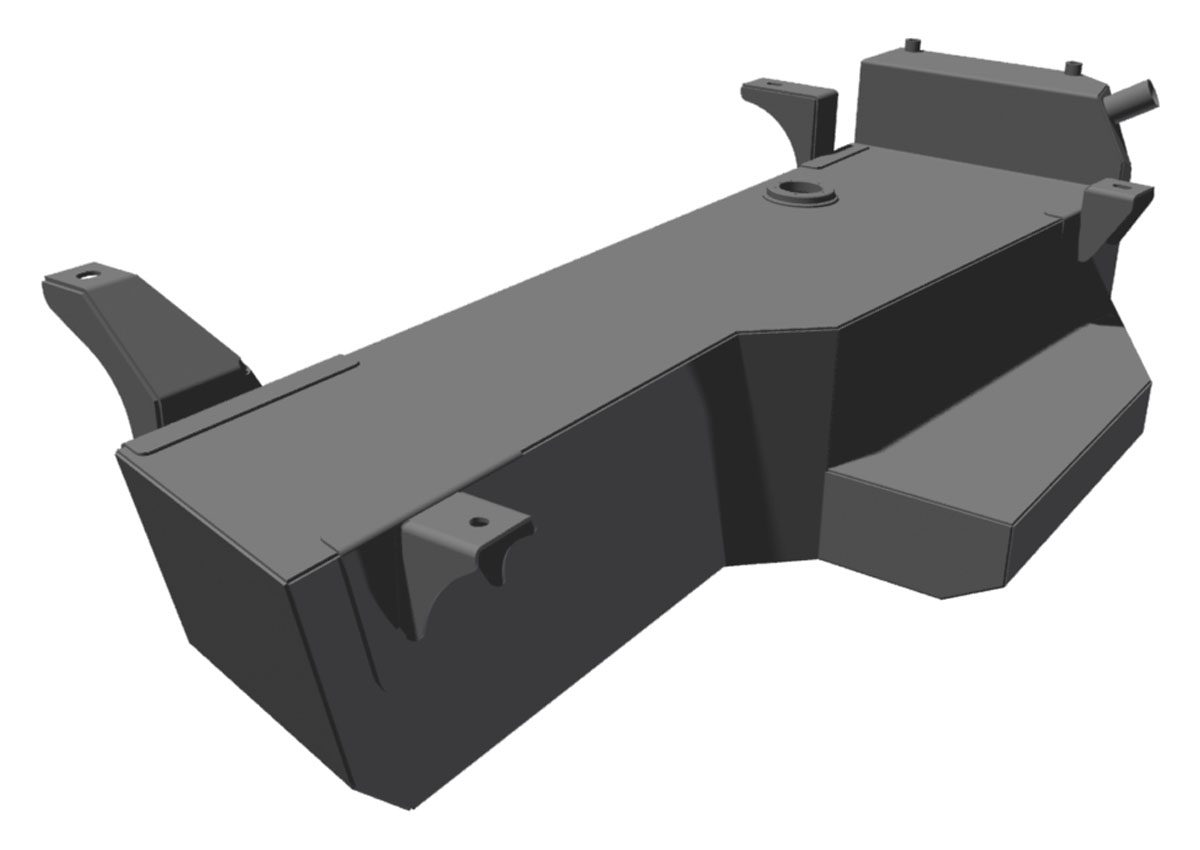

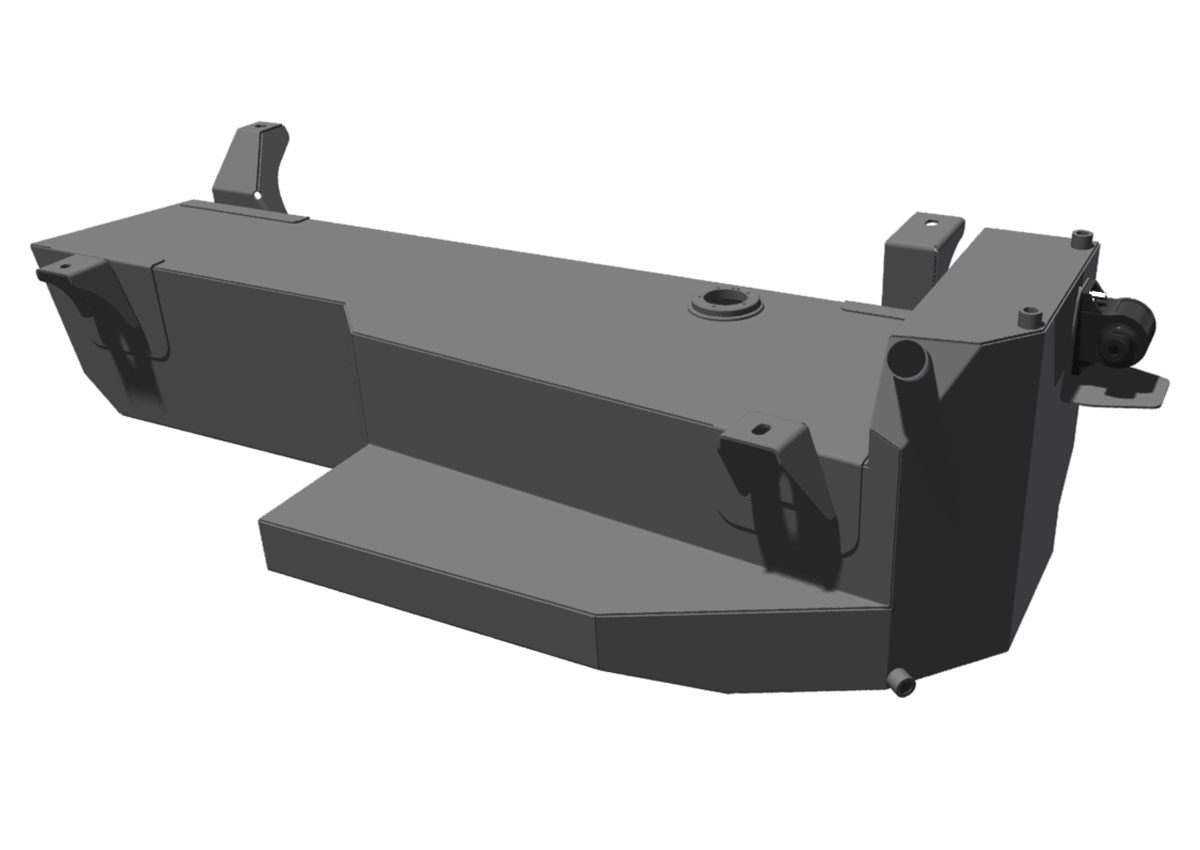

JEEP WRANGLER JK- 4 DOOR
PART NUMBER: JWJKA2
TANK TYPE: AUXILIARY
CAPACITY: 75 LITRE
FILLER POINT: TWIN FILLER- INDEPENDENTLY FILL EACH TANK
FUEL SUPPLY METHOD: TRANSFERS TO MAIN TANK
TANK LOCATION: PASSENGER SIDE
FITTING TIME: 5.5 hour/s
MODIFICATIONS: RELOCATE CHARCOAL CANISTER- BRACKET SUPPLIED

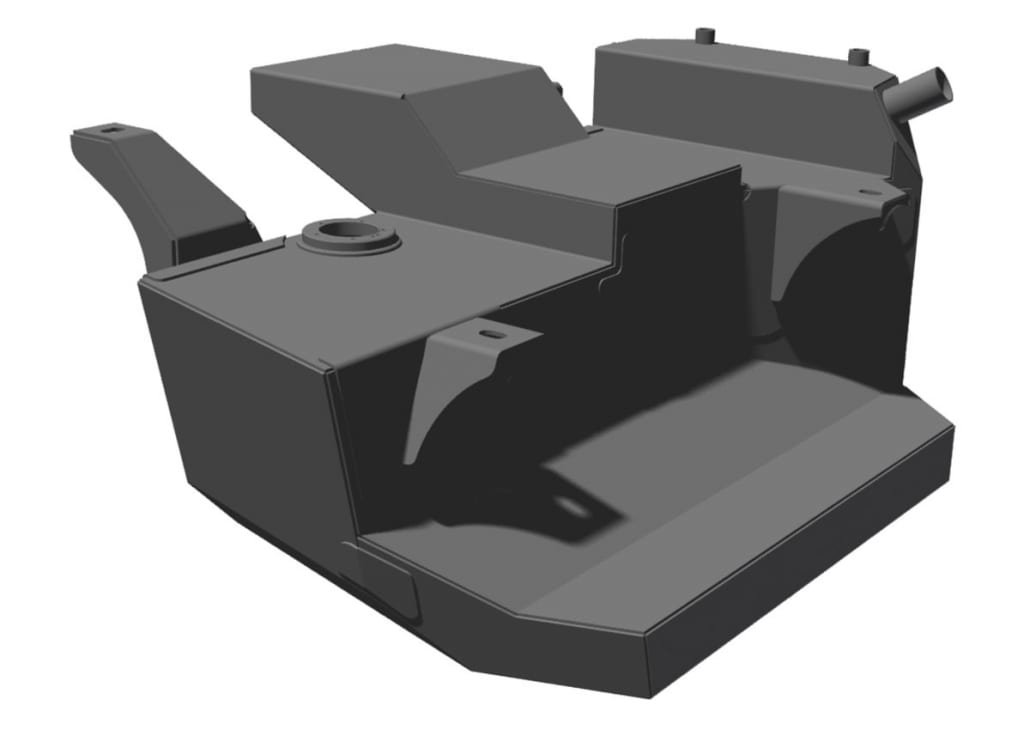

JEEP WRANGLER JK- 2 DOOR
PART NUMBER: JWJKA1
TANK TYPE: AUXILIARY
CAPACITY: 50 LITRE
FILLER POINT: TWIN FILLER- INDEPENDENTLY FILL EACH TANK
FUEL SUPPLY METHOD: TRANSFERS TO MAIN TANK
TANK LOCATION: PASSENGER SIDE
FITTING TIME: 5.5 hour/s
MODIFICATIONS: RELOCATE CHARCOAL CANISTER- BRACKET SUPPLIED

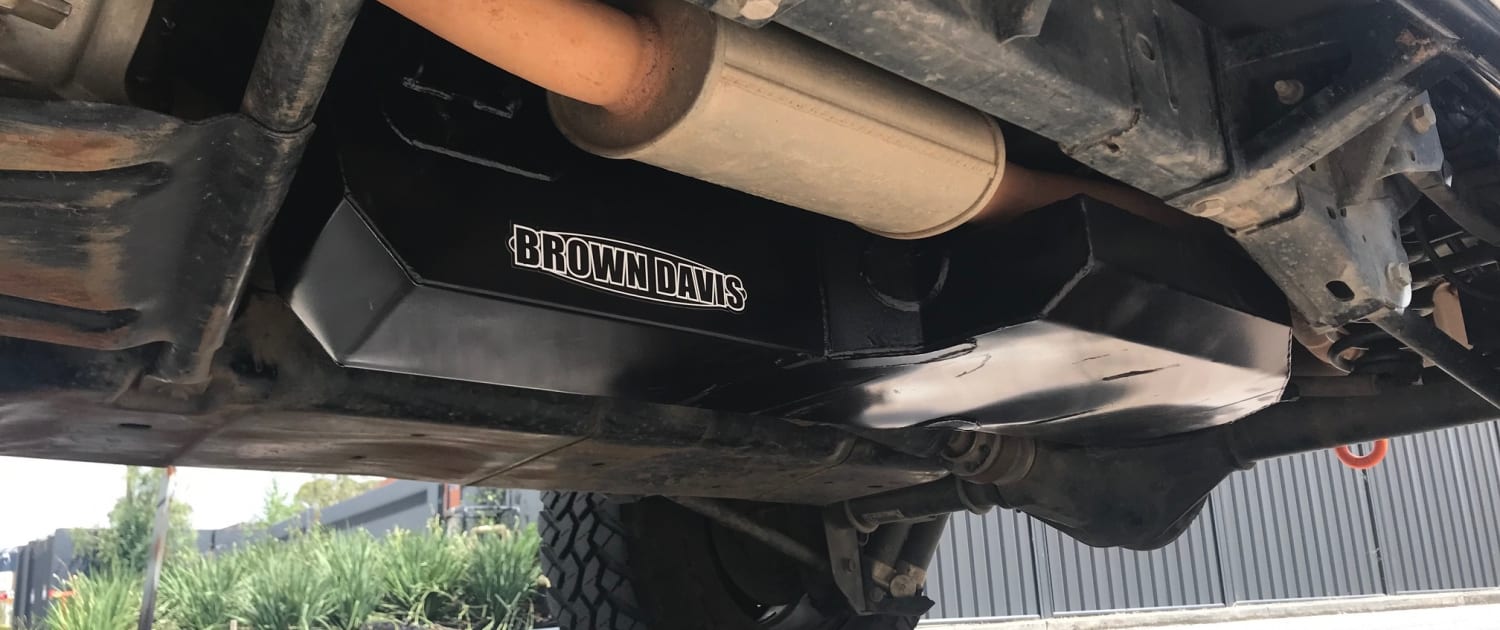

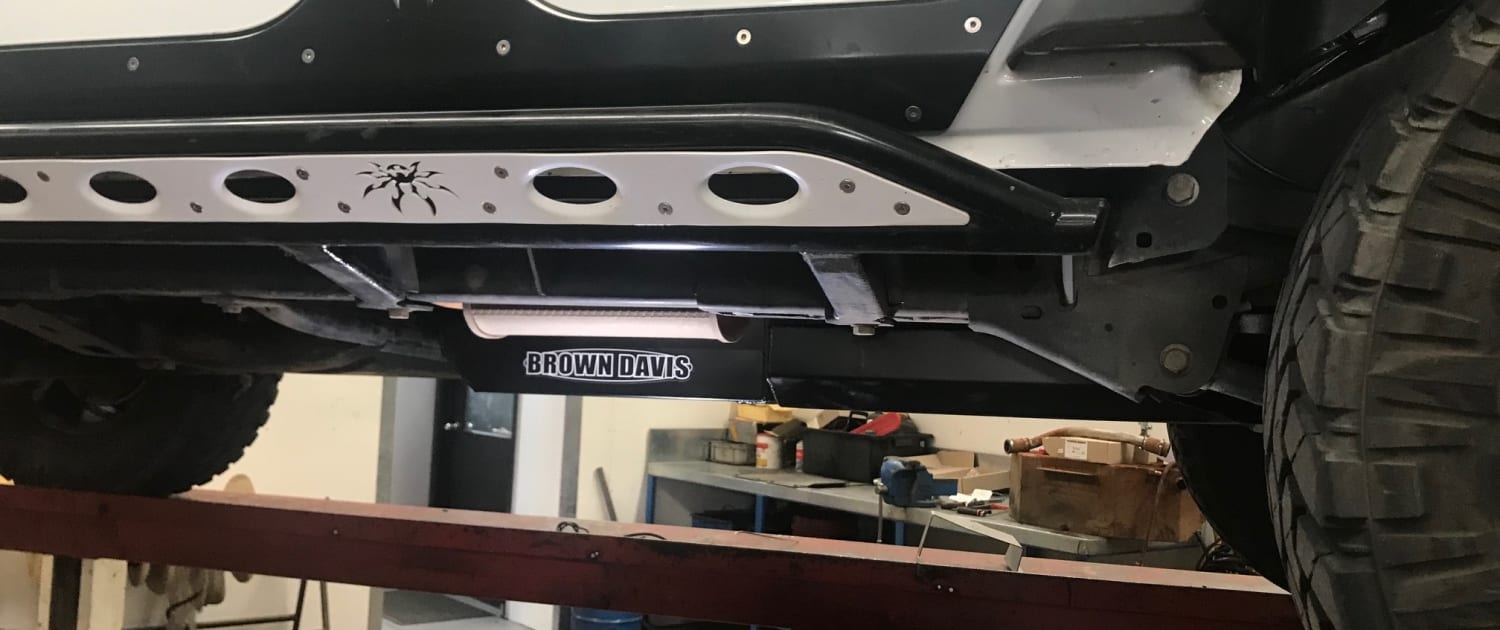

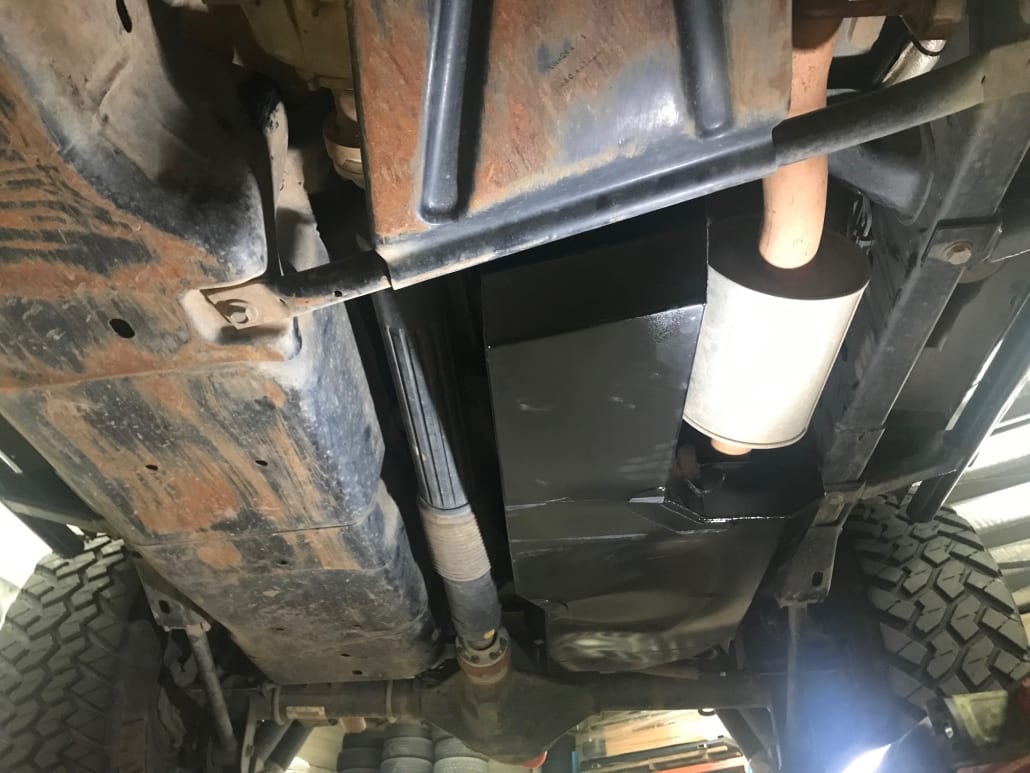

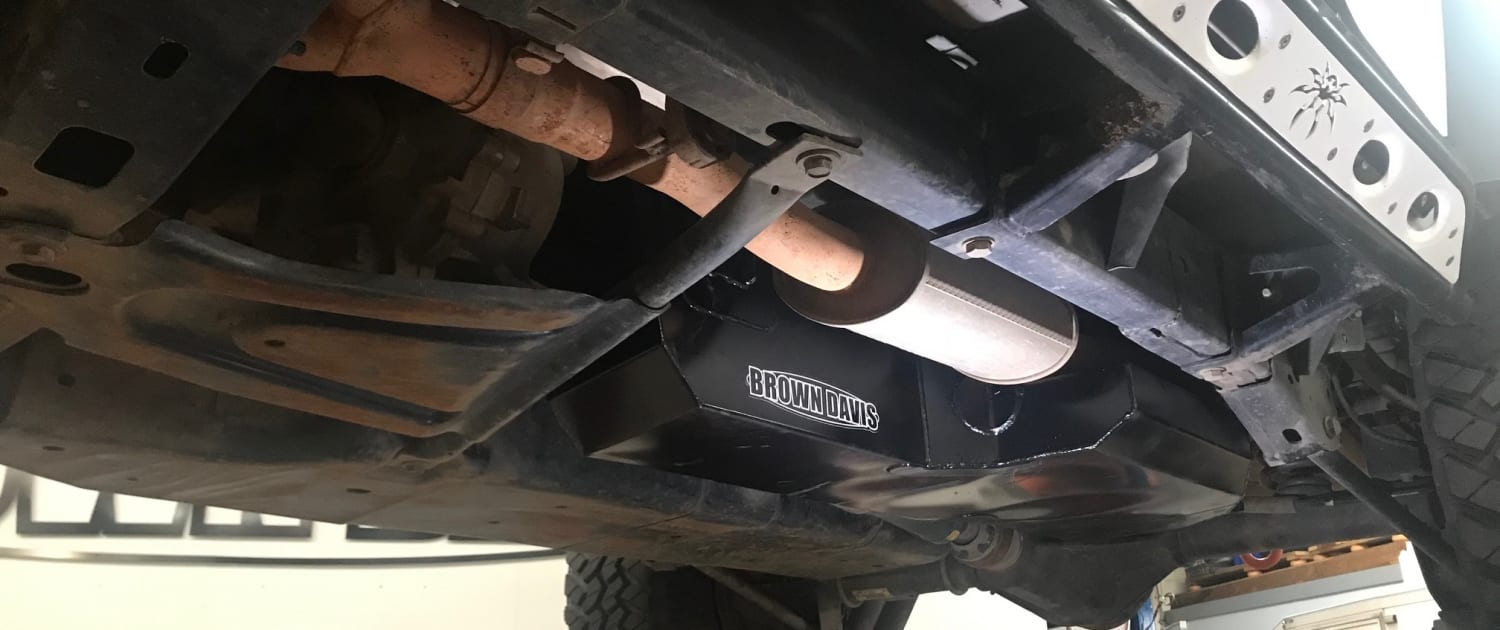

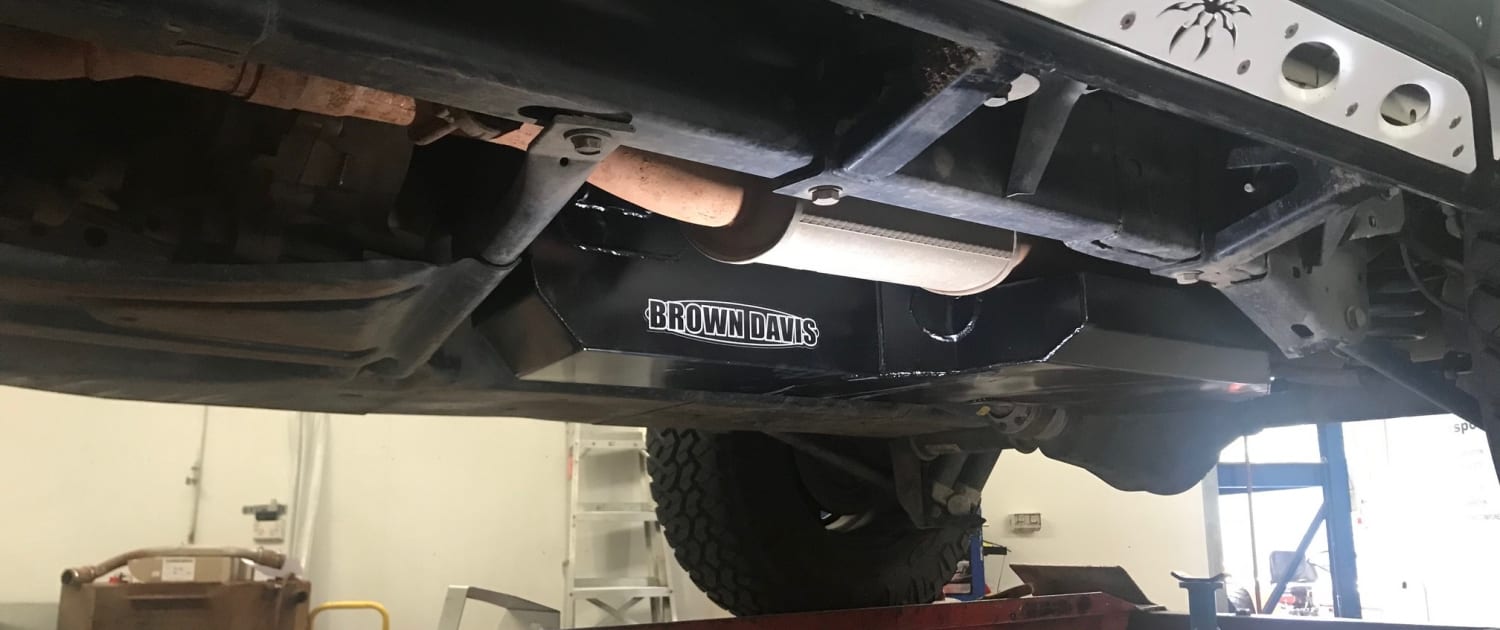

Key features of the Jeep Wrangler JK Auxiliary Long Range Fuel Tanks
1
2
3
4
5
6
1
Internal baffling system to prevent fuel slosh and strengthen tank structure
2
Gusseted brackets with double thickness pads to spread tank mounting loads
3
Fuel sender unit flange – Excepts supplied sender unit to give fuel level reading
4
Filler- BD tank fill separately to standard fuel tank- Twin filler Supplied
5
Fast fill breather for rapid filling and to reduce bowser shut off
Transfer auxiliary fuel tank gauge, switch and buzzed
This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch, fuel will replenish your vehicles standard tank, which in turn is then fed to the engine. An LED gauge is supplied to show the driver the fuel level of the auxiliary fuel tank at all times. The small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes. When the auxiliary tank becomes empty an automatic alarm will sound to alert the driver to switch the pump system off. This prevents the pump from continuously running, preventing fuel pump failure. All parts and hardware for installation are supplied.
THE LED GAUGE WILL SHOW TANK LEVEL AT ALL TIMES EVEN IF PUMP IS NOT RUNNING.
WHEN BUTTON IS PRESSED THE PUMP WILL BEGIN TRANSFERRING FUEL ACROSS TO YOUR VEHICLES MAIN TANK. THE ROUND YELLOW LED LIGHT SHOWS PUMP IS RUNNING
AS FUEL IS BEING TRANSFERRED ACROSS THE LED LIGHTS WILL SHOW FUEL LEVEL REMAINING IN YOUR AUXILIARY TANK. AT ANY STAGE YOU CAN PRESS THE BUTTON AND STOP THE TRANSFER OF FUEL.
WHEN TANK IS COMPLETELY EMPTY A BUZZER WILL SOUND AS A REMINDED TO TURN THE PUMP OFF. LEAVING FUEL PUMPS ON FOR LONG PERIODS OF TIME CAN BURN THEM OUT
Instructions supplied
The Brown Davis Jeep JK Auxiliary Fuel Tanks comes instructions that walk you through the installation. Some fuel system and wiring knowledge is needed for this install
