Mazda BT-50 2011-2020

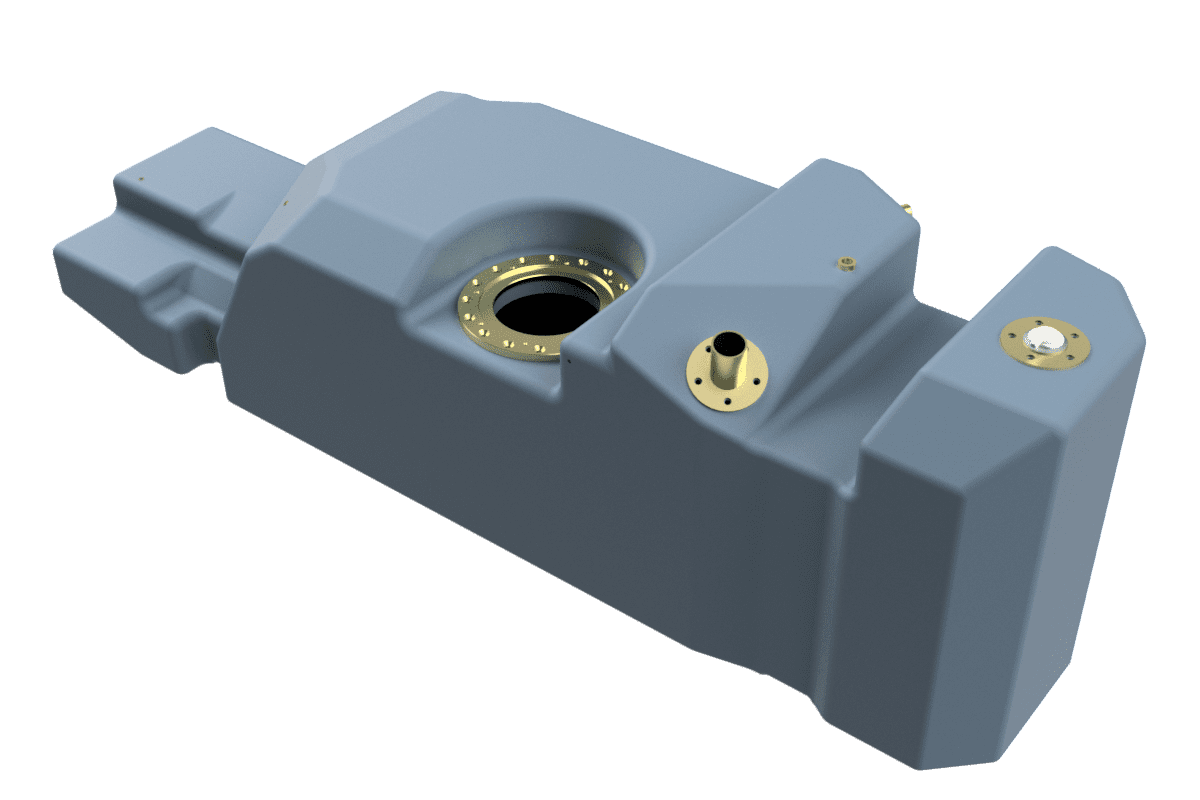

145 LITRE POLY REPLACEMENT LONG RANGE FUEL TANK

The Mazda BT-50 has proven itself not just on-road but off-road. Whether driving between jobs sites as a tradie or tackling the Kimberley the Ranger is perfectly suited. The Brown Davis replacement long range fuel tank has been designed with this in mind. More information on the massive driving range increase and product compatibility can be found below.

Specifications

PART NUMBER: PT-FRPX
TANK TYPE: REPLACEMENT
CAPACITY: 145 LITRE
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANDARD TANK
FITTING TIME: 2 hour/s
MODIFICATIONS: NONE REQUIRED
SHIPPING WEIGHT: 20 Kg
COMMENTS: FITS WITH UNDER VEHICLE BATTERY TRAY- CONFIRMED ON PIRAHNA AND ARB

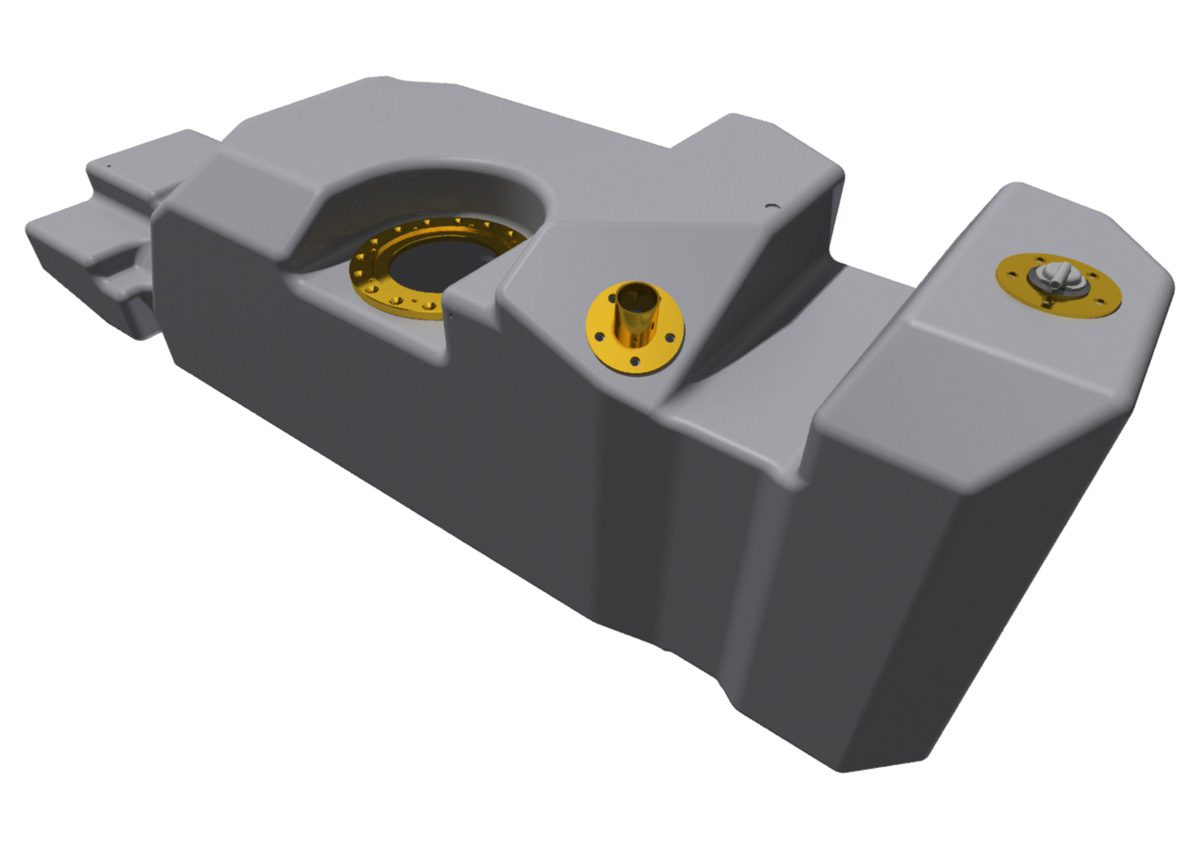

Key features of the Mazda BT-50 Poly Replacement Tank

1
2
3
4
5
6
1

Tapered approach angle to reduce frontal impact and improve ramp over clearance

2

Fuel pump sender flange designed to re-use vehicles original equipment

3

Roll over check valve for fuel expansion and venting

4

Filler tube, connects to vehicles original filling point

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Fuel line locators- for ease of fitment and to prevent kinking

TRUE SHAPE MOULDING PROCESS- MAXIMISES SPACE

THICKER BASE WHERE GREATER STRENGTH IS REQUIRED (WALL 7MM, BASE 11-14MM)

NEW GENERATION MATERIAL- HAS LONG TERM UV STABILISATION AND IS SPECIFICALLY DESIGNED WITH DIESEL FUEL APPLICATION IN MIND.

PRESSURE TESTED

 APPROX 15-20KG NET WEIGHT

SHAPE MEMORY- REVERTS BACK TO ORIGINAL SHAPE AFTER IMPACT



Brown Davis Fuel Trap System

The Brown Davis fuel trap systems helps confine fuel around the vehicles sender unit.

Step by Step DIY instructions supplied

The Brown Davis Ford Ranger Poly replacement tank comes with step by step instructions that walk you through every step of the install.

Vehicle Driving Range



FIGURES BASED ON 4X2 2.2L DISEL– AS QUOTED BY MAZDA



MANUAL 7.6 LITRES PER 100KM / AUTOMATIC 8.9 LITRES PER 100KM


  • 80 Litre Standard Tank
  • 145 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (7.6T) / Auto (8.9LT)
  • 1052.63km / 898.87km
  • 1907.89km / 1629.21km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 80 Litre Standard Tank
  • 81.25% Increase in Capacity

FIGURES BASED ON 4X4 3.2L DIESEL– AS QUOTED BY FORD

MANUAL 8.9 LITRES PER 100KM / AUTOMATIC 9.2 LITRES PER 100KM


  • 80 Litre Standard Tank
  • 145 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (8.9T) / Auto (9.2LT)
  • 898.87km / 869.56km
  • 1629.21km / 1576.08km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 80 Litre Standard Tank
  • 81.25% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

81.25% INCREASE IN FUEL CAPACITY

Compatibility

Confirmed fitment

  • Models

    CONFIRMED ON 2011-2019

Standard vehicles features

  • DISTANCE TO EMPTY

    In short, the distance to empty function on your trip computer will not remain accurate with your new tank. Your vehicles ECU has the volume of the original tank calibrated to it. As the Distance to Empty counts down, the float starts to move from Full to empty, because the volume of the tank has changed dramatically without changing any reference data for the ECU to base it’s calculations on, the Distance to Empty is incorrect.

    Your fuel gauge will remain accurate, as the float inside the tank will indicate how much fuel is inside the tank, so your readings going from Full, to ¾ to ½ right down to empty will remain accurate as it is now. Your average fuel consumption calculations will remain accurate too, just not DTE.

    What we tell our customers is that most or our Long Range Tanks will tend to ‘hang’ on full for a while longer than it did originally, simply put there’s more volume to be used before the float starts to move downward. Your low fuel warning light will work as intended.

    The best tip we culd give you is to reset your trip meter every time you fill your tank, over time you’ll be able to establish how far you can travel in different driving conditions.

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Filler may need relocating after tank fitment. Some under tray draws may interfere with tank.

  • Exhuasts

    Fits with most aftermarket exhuasts – fits most 3′ exhaust. Confirmed on Redback, Big Boar and Taipan

International vehicles

  • Confirmed fitment

    South Africa, Thailand / Asia

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.

Check out our Range of Products for the Mazda BT-50

Now available to purchase online

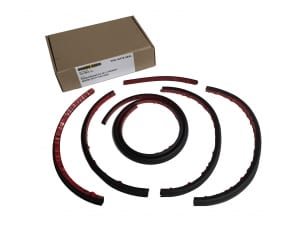

Tailgate Seal Kit

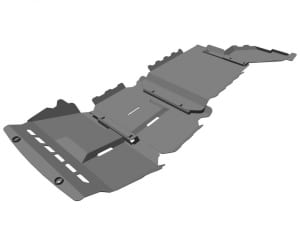

Under Vehicle Protection
