TOYOTA HILUX 2005-2015

145 LITRE POLY REPLACEMENT LONG RANGE FUEL TANK

The Toyota Hilux has been taking Australian’s around our huge country for decades. The difference now compared to the old days is how you carry the extra fuel required for your long distance trip. Dirty jerry’s is a thing of the past!

In only 1.75 hours your nearest Brown Davis dealer can remove your standard 80lt fuel tank and replace it with a whopping 145lt Poly Brown Davis long range fuel tank. This almost doubles the vehicles driving range! Brown Davis Replacement tanks utilise factory components making for a quick and easy install with no modifications.

Specifications

PART NUMBER: PT-TH05
TANK TYPE: REPLACEMENT
CAPACITY: 145 LITRE
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANDARD TANK
FITTING TIME: 2 hour/s
MODIFICATIONS: NONE REQUIRED
SHIPPING WEIGHT: 20 Kg

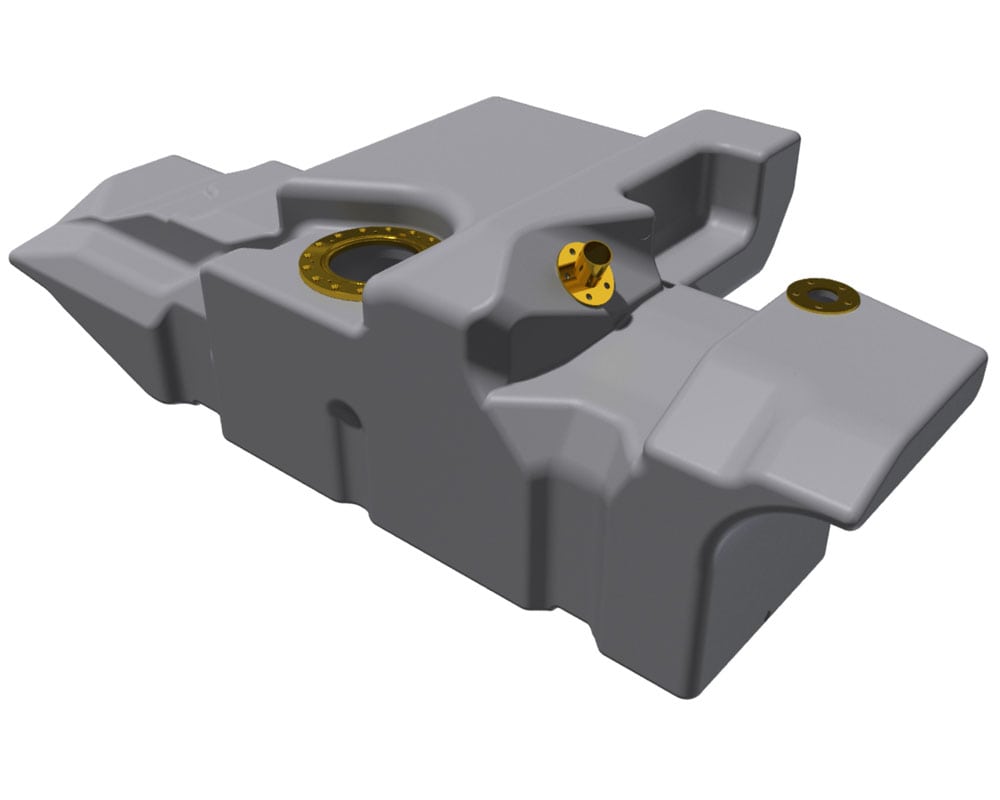

Key features of the Toyota Hilux Poly Replacement Tank

1
2
3
4
5
6
1

Tapered approach angle to reduce frontal impact and improve ramp over clearance

2

Fuel pump sender flange designed to re-use vehicles original equipment

3

Roll over check valve and expansion box for fuel expansion and venting

4

Filler tube, connects to vehicles original filling point

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Fuel line locators- for ease of fitment and to prevent kinking

TRUE SHAPE MOULDING PROCESS- MAXIMISES SPACE

THICKER BASE WHERE GREATER STRENGTH IS REQUIRED (WALL 7MM, BASE 11-14MM)

NEW GENERATION MATERIAL- HAS LONG TERM UV STABILISATION AND IS SPECIFICALLY DESIGNED WITH DIESEL FUEL APPLICATION IN MIND.

PRESSURE TESTED

 APPROX 15-20KG NET WEIGHT

SHAPE MEMORY- REVERTS BACK TO ORIGINAL SHAPE AFTER IMPACT



Brown Davis Fuel Trap System

The Brown Davis fuel trap systems helps confine fuel around the vehicles sender unit. When your fuel level is low and you come across steeper terrain you can be confident your vehicles engine will always receive fuel.

Step by Step DIY instructions supplied

The Brown Davis Toyota Hilux Poly replacement tank comes with step by step instructions that walk you through every step of the install.

Vehicle Driving Range

FIGURES BASED ON DUAL CAB 4X4 SR5 (as quoted by Toyota)

MANUAL 7.6 LITRES PER 100KM / AUTOMATIC 8.5 LITRES PER 100KM


  • 80 Litre Standard Tank
  • 145 Litre Brown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (7.6T) / Auto (8.5LT)
  • 1052.63km / 941.18km
  • 1907.898km / 1705.88km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 80 Litre Standard Tank
  • 81.24% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

81.24% increase

Compatibility

Confirmed fitment

  • Models

    2005-2015 All Models – Diesel Only

Standard vehicles features

  • Distance till empty

    In short, the distance to empty function on your trip computer will not remain accurate with your new tank. Your vehicles ECU has the volume of the original tank calibrated to it. As the Distance to Empty counts down, the float starts to move from Full to empty, because the volume of the tank has changed dramatically without changing any reference data for the ECU to base it’s calculations on, the Distance to Empty is incorrect.



    Your fuel gauge will remain accurate, as the float inside the tank will indicate how much fuel is inside the tank, so your readings going from Full, to ¾ to ½ right down to empty will remain accurate as it is now. Your average fuel consumption calculations will remain accurate too, just not DTE.



    What we tell our customers is that most or our Long Range Tanks will tend to ‘hang’ on full for a while longer than it did originally, simply put there’s more volume to be used before the float starts to move downward. Your low fuel warning light will work as intended.



    The best tip we culd give you is to reset your trip meter every time you fill your tank, over time you’ll be able to establish how far you can travel in different driving conditions.

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Filler may need relocating after tank fitment. Some under tray draws may interfere with tank.

  • Exhuasts

    Fits with most aftermarket exhuasts – fits most 3′ exhaust. Confirmed on Redback, Big Boar and Taipan

International vehicles

  • Confirmed fitment

    South Africa, Thailand / Asia

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.

Check out our range of products for the Toyota Hilux

Brown Davis products now available online

Tailgate Seal Kits

Under Vehicle Protection

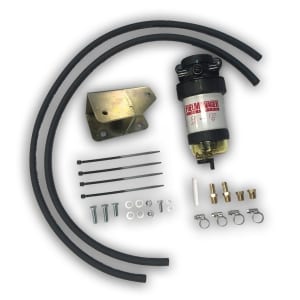

Pre Fuel Filter Kits
