Suspension
Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN.

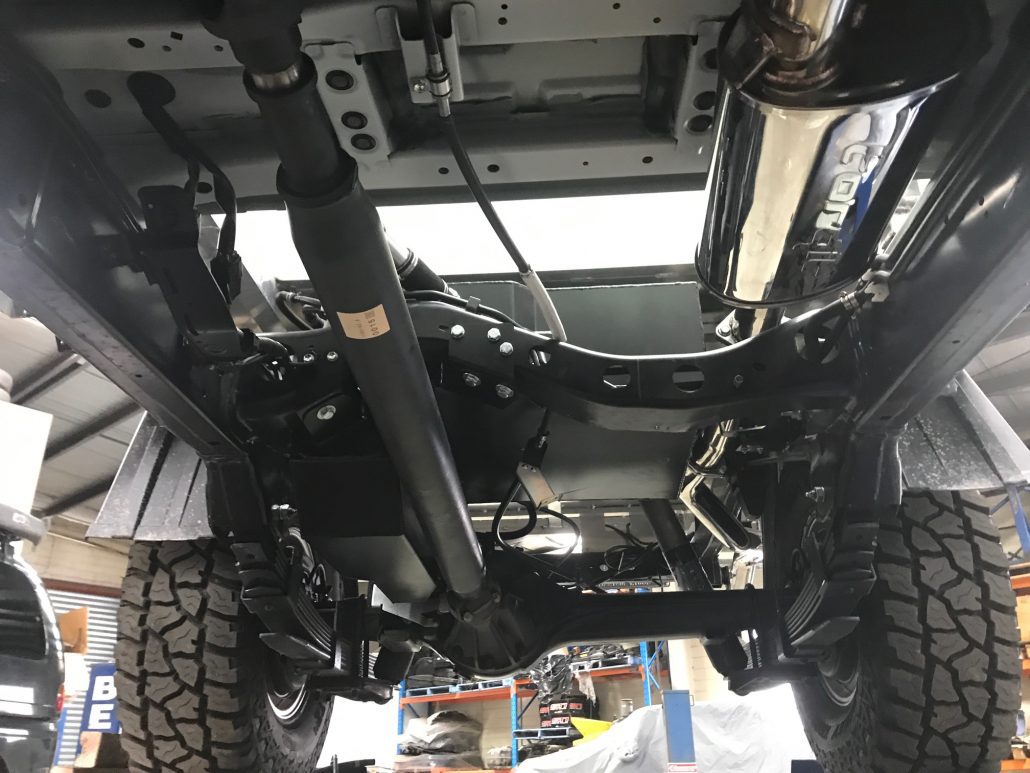

PATRIOT CAMPERS 79 SERIES SUPER TOURER- FITTED WITH BROWN DAVIS LONG RANGE FUEL TANKS
TOYOTA LANDCRUISER 79 SERIES SINGLE CAB (2016-PRESENT)
RELOCATION LONG RANGE FUEL TANK AND SPARE WHEEL WINCH KIT
Specifications / Options
PART NUMBER: TL79SC75A2
TANK TYPE: RELOCATION TANK
CAPACITY:105 LITRES
FILLER POINT: DRIVERS SIDE BEHIND CABIN – FILLER SUPPLIED
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: UNDER MIDDLE OF VEHICLE- DRIVERS SIDE
FITTING TIME: 5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: FITS WITH STANDARD EXHAUST
PART NUMBER: TL79SC105A2
TANK TYPE: RELOCATION TANK
CAPACITY:105 LITRES
FILLER POINT: DRIVERS SIDE BEHIND CABIN – FILLER SUPPLIED
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: UNDER MIDDLE OF VEHICLE- DRIVERS SIDE
FITTING TIME: 5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: REQUIRES AFTERMARKET EXHAUST- CONFIRMED ON TORQIT EXHAUSTED- OPTIONAL SPARE WHEEL WINCH KIT PN:TL79SC-SW

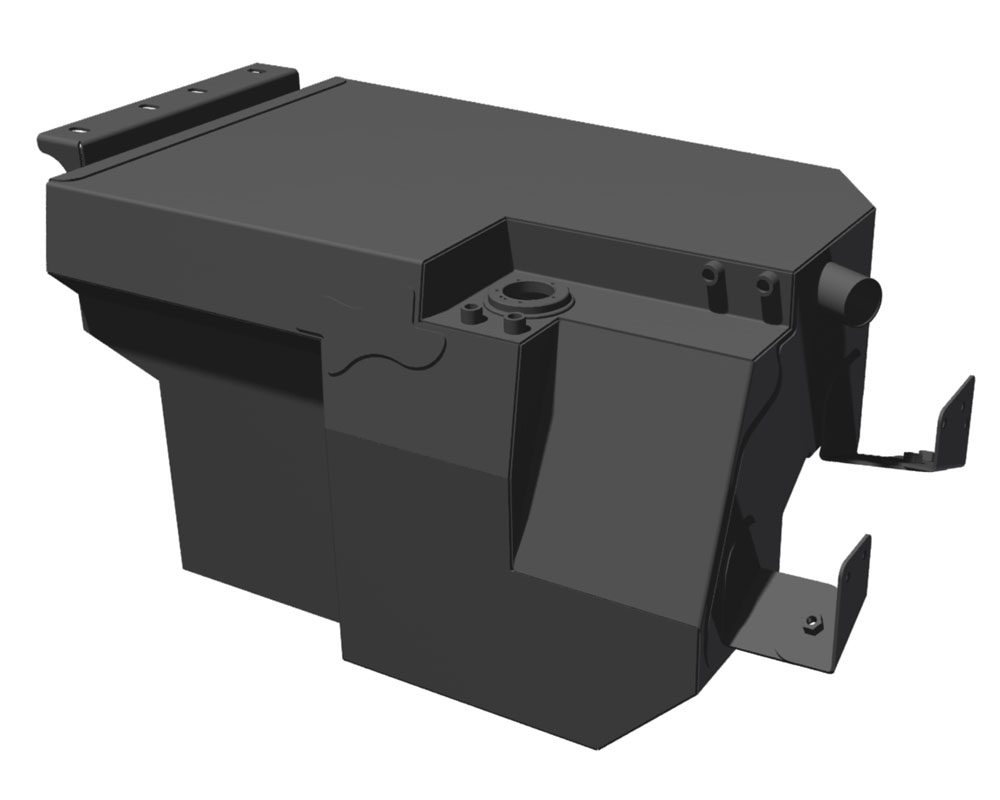

Key features of the Toyota 79 Series relocation Long Range Fuel Tank
1
2
3
4
5
6
7
1
Internal baffling system to prevent fuel slosh and strengthen tank structure
2
Gusseted brackets with double thickness pads to spread tank mounting loads
3
Fuel sender unit flange – Excepts gauge unit out of standard rear tank
4
filler tube, connects to supplied filler and locking filler cap
5
Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)
6
Fuel Pick up- supplies fuel to engine
7
Return- returns fuel from engine in
Tough tourers need a tough tank
Patriot Campers use Brown Davis Long Range Fuel Tanks in their 79 series Super Tourers. They push our gear to the limits towing camper trailers all over the country.
Step by Step DIY instructions supplied
The Brown Davis 79 Series relocation tanks comes with step by step instructions that walk you through every step of the install.
Compatiblity with other products
